MIL-DTL-55302/78D

NOTES:

1. All dimensions are before coating.

2. Material is aluminum SAE-AMS-4150.

3. Coating: Anodize SAE-AMS-2470.

4. Installs in MIL-DTL-55302/76.

Polarization pin

Patent number 3,714,617

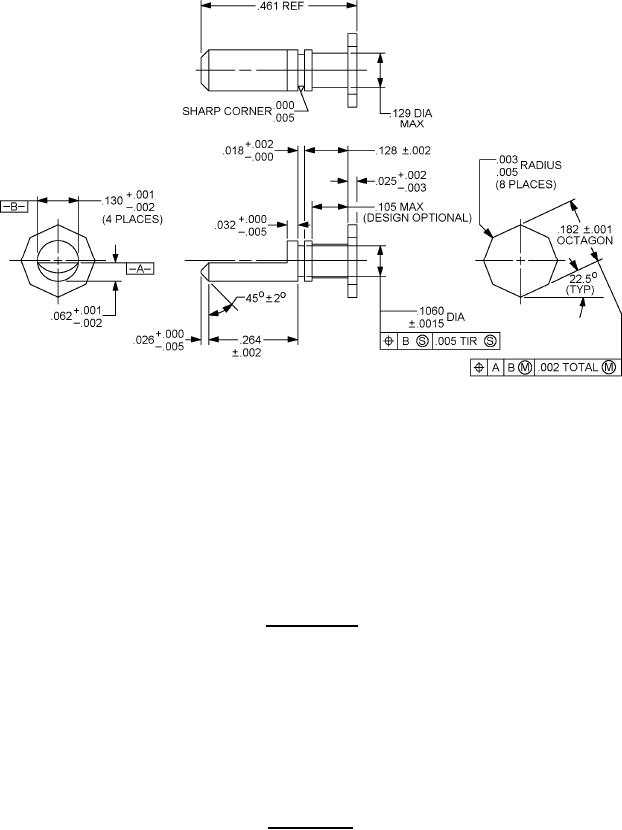

FIGURE 1. Key polarizing - Continued.
