INCH-POUND
MIL-DTL-55302/98D
17 November 2004
SUPERSEDING
MIL-C-55302/98C(CR)
12 January 1981
DETAIL SPECIFICATION SHEET
CONNECTORS, PRINTED CIRCUIT SUBASSEMBLY AND ACCESSORIES:
CONTACT, WRAPPOST REMOVABLE TYPE
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-DTL-55302.
Inches
mm
.001
0.03
.0015
0.038
.003
0.08
.015
0.38
.016
0.41
.025
0.64
.049
1.24
.072
1.83
.076
1.93
.078
1.98
.225
5.72
.365
9.27
1.165
29.59

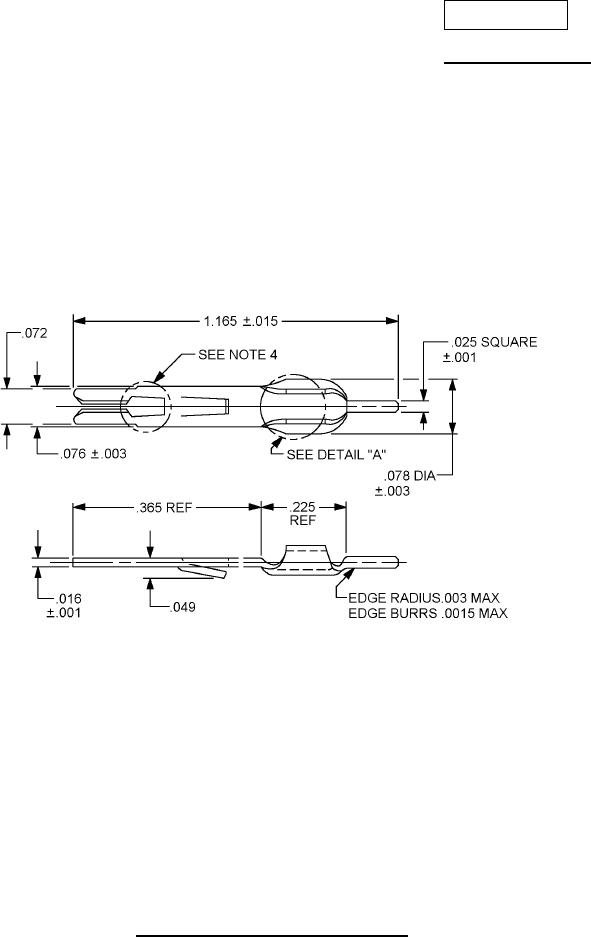

FIGURE 1. Contact, hermaphroditic, wrappost removable.
AMSC N/A
FSC 5935
