MIL-DTL-55302/98D
Inches
mm
.0000050
0.000127
.0000100
0.000254
.005
0.13
.100
2.54
.250
6.35
.266
6.79
.480
12.19

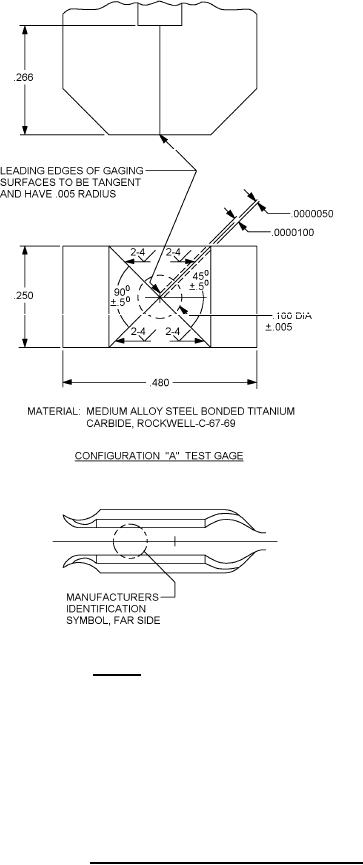

Detail A
Manufacturer's identification symbol shall be imprinted approximately as shown.
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified tolerances shall be ± .005 (0.13 mm). All dimensions are for parts after plating.
4. Contact relief hole configuration, optional.
5. Contact insertion and removal tool M81969/5-01 and M81969/4-02.
FIGURE 1. Contact, hermaphroditic, wrappost removable - Continued.
2
