INCH-POUND
MIL-DTL-83502/2G
10 February 2004
SUPERSEDING
MIL-PRF-83502/2F
3 July 1997
DETAIL SPECIFICATION SHEET
SOCKETS PLUG-IN ELECTRONIC COMPONENTS, ROUND STYLE
(T05, PRESS TO FIT)
This specification is approved for use by all Departments
and agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-DTL-83502.
45° SEE NOTE 5
SEE NOTE 6
SEE NOTE 4
.200 ±.010 DIA
.400 ±.010
B
C
A
45°
.362
+.007
.373
DIA
-.003

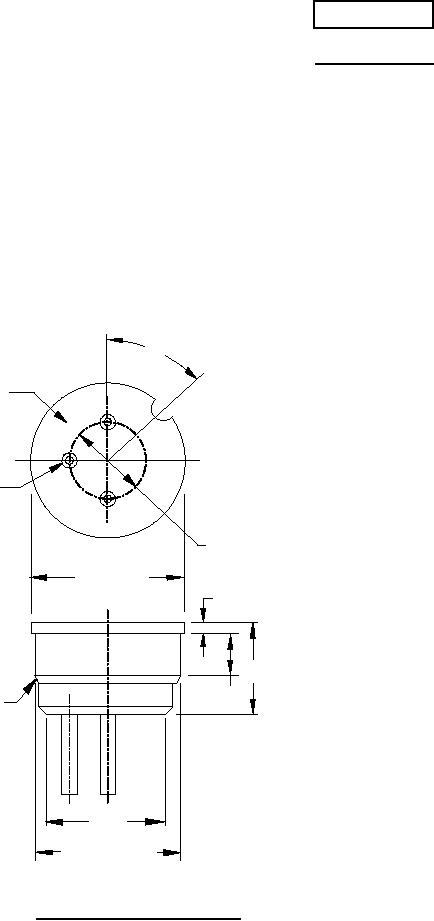

FIGURE 1. Dimensions and configurations.
