INCH-POUND
MIL-DTL-83513/16D
6 March 2009
SUPERSEDING
MIL-DTL-83513/16C
27 February 2003
DETAIL SPECIFICATION SHEET
CONNECTORS, ELECTRICAL, RECTANGULAR, PLUG, MICROMINIATURE,
POLARIZED SHELL, RIGHT ANGLE, PIN CONTACTS, 2 ROW, SOLDER TYPE,
STANDARD PROFILE, 9 THROUGH 37 CONTACTS, PRINTED CIRCUIT BOARD
This specification is approved for use by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall
consist of this specification sheet and MIL-DTL-83513.
Inches
mm
.003
0.08
.0038
0.097
.010
0.25
.015
0.38
.025
0.64
.050
1.27
.0669
1.699
.096
2.44
.125
3.18
.150
3.81
.185
4.70
.190
4.83

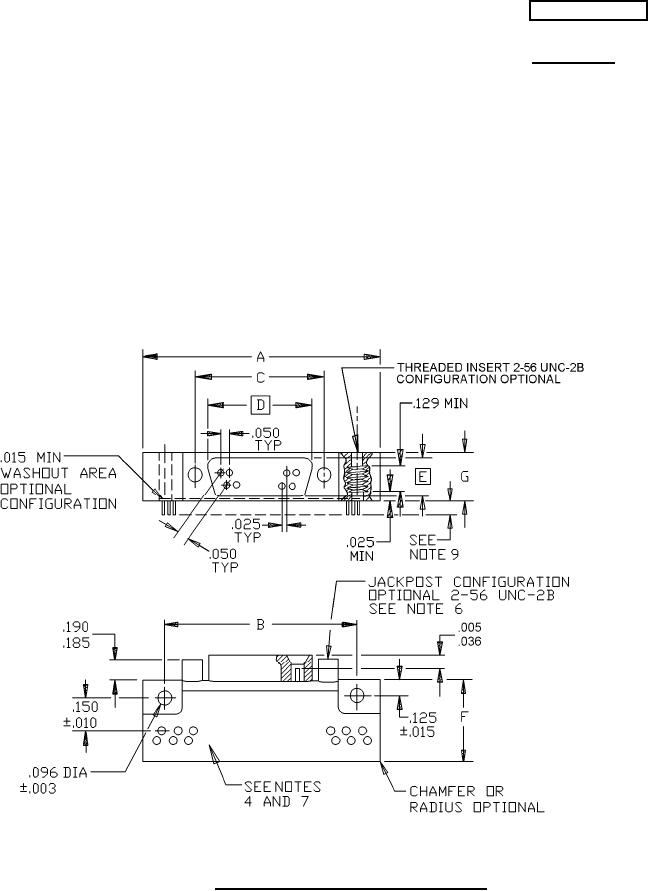

FIGURE 1. Connector, plug, .050 inch (1.27mm) spacing.
AMSC NA
FSC 5935
