INCH-POUND
MIL-DTL-83513/24D
18 March 2009
SUPERSEDING
MIL-DTL-83513/24C
27 February 2003
DETAIL SPECIFICATION SHEET
CONNECTORS, ELECTRICAL, RECTANGULAR, PLUG, MICROMINIATURE,
POLARIZED SHELL, STRAIGHT, PIN CONTACTS, 4 ROW, SOLDER TYPE,
100 CONTACTS, PRINTED CIRCUIT BOARD
This specification is approved for use by all Departments and
Agencies of the Department of Defense
The requirements for acquiring the product described herein shall
consist of this specification sheet and MIL-DTL-83513.

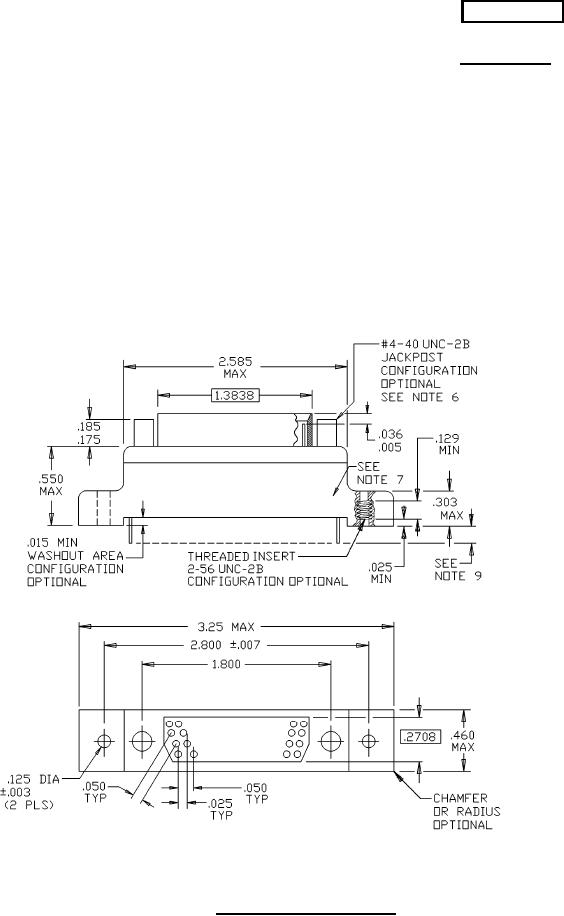

FIGURE 1. Connector, plug, .050 spacing.
AMSC N/A
FSC 5935
