MIL-DTL-83513/24D

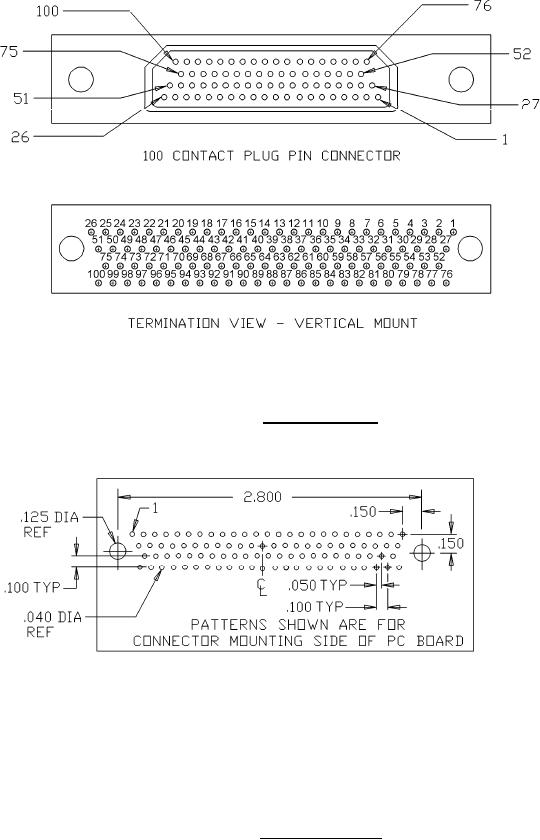

NOTE: Engaging face of pin insert shown, cavity identification numbers are for reference only and do not appear on
the part.
FIGURE 2. Insert arrangement.
Inches
mm
.040
1.02
.050
1.27
.100
2.54
.125
3.18
.150
3.80
2.800
71.12
FIGURE 3. Layout arrangement.
4
