MIL-DTL-83517/3A
Inches
mm
.015
0.38

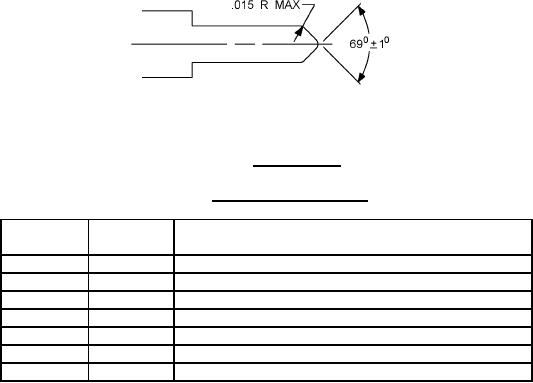

FIGURE 4. Test pin data.
TABLE I. PIN and characteristics.
PIN
Connector
Characteristics
M83517/3-
figure no.
31001
1
2 hole flange mount.
.012 inch (0.30 mm) wide tab.
31002
1
2 hole flange mount.
.018 inch (0.46 mm) wide tab.
31003
1
2 hole flange mount.
.028 inch (0.71 mm) wide tab.
31004
2
4 hole flange mount.
.012 inch (0.30 mm) wide tab.
31005
2
4 hole flange mount.
.018 inch (0.46 mm) wide tab.
31006
2
4 hole flange mount.
.028 inch (0.71 mm) wide tab.
31007
3
2 hole flange mount.
.025 inch (0.64 mm) wide tab.
Permeability of nonmagnetic materials: Applicable.
Seal:
Hermetic sealed connectors: Not applicable.
Pressurized and weatherproof connectors: Not applicable.
Insulation resistance: 5,000 megohms minimum in accordance with test procedure EIA-364-21.
Center contact retention:
Axial force: 6 pounds minimum.
Torque: 4 inch-ounces minimum.
Dielectric withstanding voltage: In accordance with test procedure EIA-364-20, test condition I.
Test voltage 1,000 V rms.
Corrosion: In accordance with test procedure EIA-364-26, test condition B.
Voltage standing wave ratio (VSWR): 1.35 +.01F (F in GHz), maximum.
Test frequency range: From .5 to 18.0 GHz. (Using a test method approved by the qualifying
activity.)
5
