MIL-DTL-83517/6A

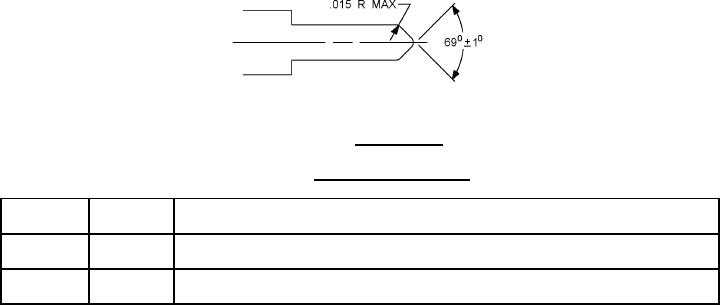

Insertion force test: Steel test pin diameter .0370 + .0001.
Insertion depth - .050/.075.
Test pin finish 16 microinches.
Insertion force 3 pounds maximum.
Withdrawal force test: Steel test pin diameter .0355 - .0001.
Insertion depth - .050/.075.
Withdrawal force 1 ounce minimum.
Test pin finish 16 microinches.
Inches mm
.015 0.38
FIGURE 2. Test pin data.
TABLE I. PIN and characteristics.
PIN
Connector
Characteristics
M83517/6-
figure no.
31001
1
Strip transmission line surface launch, receptacle for .125 inch (3.18 mm) strip
transmission line
31002
1
Strip transmission line surface launch, receptacle for .250 inch (6.35 mm) strip
transmission line.
Permeability of nonmagnetic materials: Applicable.
Seal:
Hermetic sealed connectors: Not applicable.
Pressurized and weatherproof connectors: Not applicable.
Insulation resistance: 5,000 megohms minimum in accordance with test procedure EIA-364-21.
Center contact retention:
Axial force: Not applicable.
Torque: Not applicable.
Dielectric withstanding voltage: In accordance with test procedure EIA-364-20, test condition I.
Test voltage 1,000 V rms.
Corrosion: In accordance with test procedure EIA-364-26, test condition B.
3
