INCH-POUND
MIL-DTL-83517/7A
31 May 2005
SUPERSEDING
MIL-C-83517/7
20 September 1982
DETAIL SPECIFICATION SHEET
CONNECTOR, RECEPTACLES, ELECTRICAL, COAXIAL, RADIO FREQUENCY,
STRIP OR MICROSTRIP TRANSMISSION LINE,
SERIES SMA (PIN CONTACT, 8 HOLE SURFACE LAUNCH)
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of
this specification sheet and MIL-C-83517.
Part or Identifying
"A" dim.
Transmission
Number (PIN)
line thickness
.060±.003
M83517/7-31001
.125
.120±.003
M83517/7-31002
.250

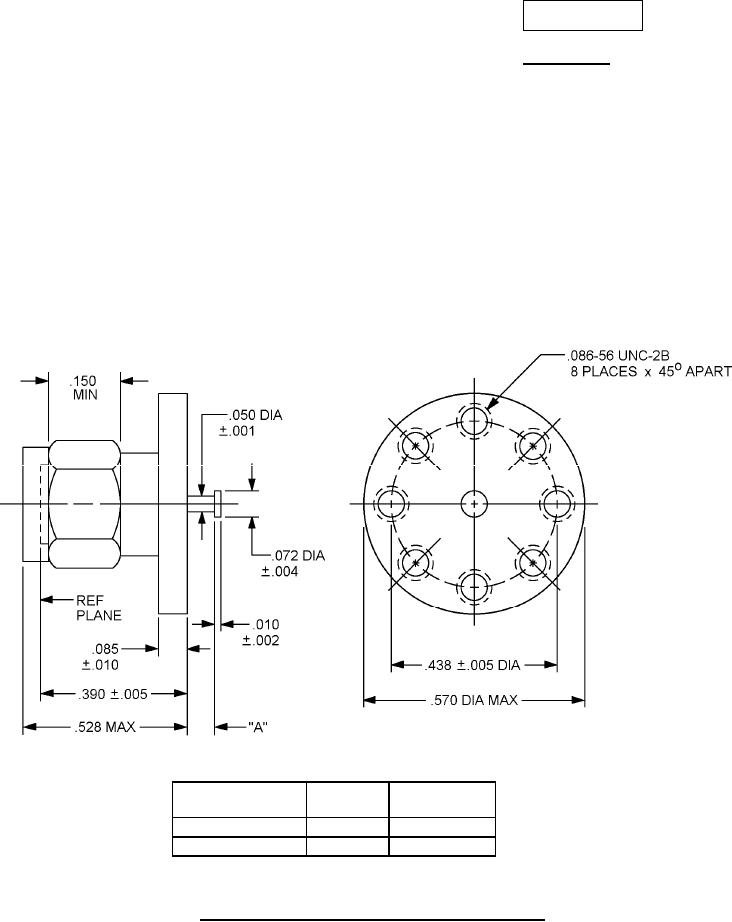

FIGURE 1. Series SMA, pin contact, surface launch, receptacle.
AMSC N/A
FSC 5935
