MIL-DTL-83517/9A
Insertion force test: Steel test pin diameter .0370 + .0001.
Insertion depth - .050/.075.
Test pin finish 16 microinches.
Insertion force 3 pounds maximum.
Withdrawal force test: Steel test pin diameter .0355 - .0001.
Insertion depth - .050/.075.
Withdrawal force 1 ounce minimum.
Test pin finish 16 microinches.
Inches mm
.015 0.38

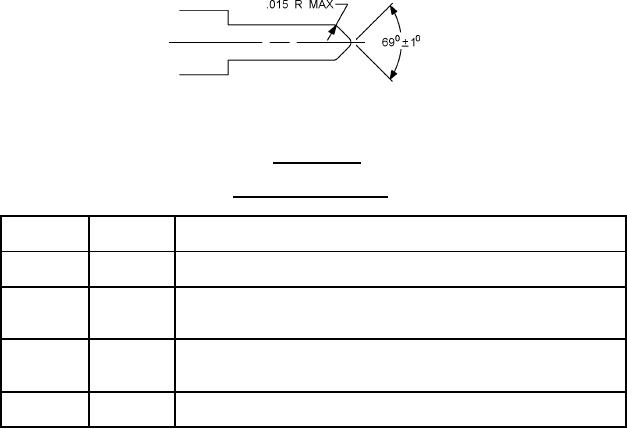

FIGURE 3. Test pin data.
TABLE I. PIN and characteristics.
PIN
Connector
Characteristics
M83517/9-
figure no.
31001
1
Strip transmission line end launch, receptacle .025 inch (0.64
mm) wide tab, for .062 inch (1.57 mm) strip transmission line.
31002
1
Strip transmission line end launch, .050 inch (1.27 mm)
receptacle .050 inch (1.27 mm) wide tab, for .125 inch (3.18 mm)
strip transmission line.
31003
1
Strip transmission line end launch, receptacle, .050 inch (1.27
mm) wide tab, (2) .063 inch (1.60 mm) support plates, for .125
strip transmission line.
31004
2
Strip transmission line end launch, receptacle, .050 inch (1.27
mm) wide tab, for .250 inch (6.35 mm) strip transmission line.
Permeability of nonmagnetic materials: Applicable.
Seal:
Hermetic sealed connectors: Not applicable.
Pressurized and weatherproof connectors: Not applicable.
Insulation resistance: 5,000 megohms minimum in accordance with test procedure EIA-364-21.
