MIL-DTL-83723/97C
REQUIREMENT:
Dimensions and configurations: See figure 1.
This connector mates with MIL-DTL-83723/83, /85, /88, /89, and /90.
Insert arrangement and polarizing position: See MIL-STD-1554 and table I.
TABLE I.
Insert arrangements requiring reduced diameter for lead-in chamfer on outer row
of the cavities as indicated.
Shell
Insert
Contact cavities
size
arrangement
8
03
1, 2, 3
10
06
1, 2, 3, 4, 5, 6
Connector accessories: See SAE-AS85049.
RFI spring strip shall have a minimum of six fingers per inch and shall point to the rear of the
connector.

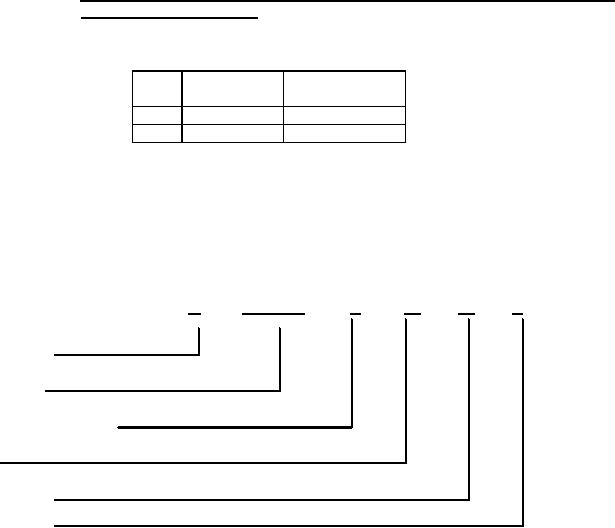

Part or Identifying Number (PIN) example:
83723/97
S
22
55
N
M
Military designation
Specification sheet
Class (see MIL-DTL-83723)
Shell size
Insert arrangement
Polarizing position
5
