MIL-DTL-9177 Connector, Audio, Airborne, General Specification ForThis specification covers the general requirements for airborne audio connectors for use in electrical and electronic equipment. Electrical, mechanical, and environmental features of these connectors include environmental resisting, RFI/EMI protection, low-level circuit capabilities, and high-cross talk resistance.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18


.
MIL-DTL-9177C

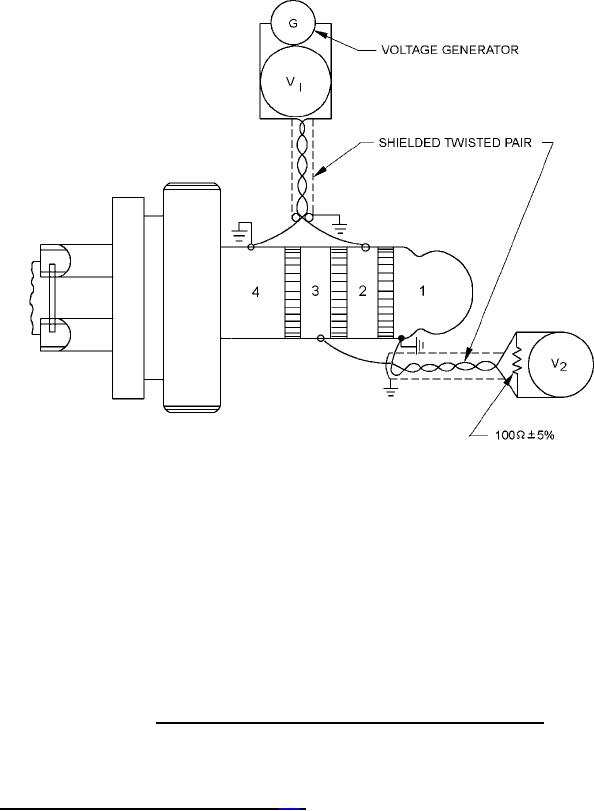

FIGURE 3. Test circuit, plug M9177/1 (open-circuit) dielectric coupling.
3.5.7 Anti-rotation detents (when specified, see 3.1). Shell halves shall be so designed as to prevent
rotation of jack contact insert and switch.
