INCH-POUND
MIL-PRF-39012/29H
4 May 2010
SUPERSEDING
MIL-PRF-39012/29G
26 September 1994
PERFORMANCE SPECIFICATION SHEET
CONNECTORS, RECEPTACLE, ELECTRICAL, COAXIAL, RADIO FREQUENCY,
(SERIES TNC, (CABLED), SOCKET CONTACT, FLANGE MOUNTED, CLASS 2)
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of
this specification sheet and MIL-PRF-39012.
Inches
mm
Inches mm
Inches
mm
.004
0.10
.34
8.64
.540
13.72
.075
1.90
.35
8.89
.570
14.48
.095
2.41
.436 11.07
.68
17.27
.099
2.51
.496 12.60
.70
17.78
.125
3.18
.504 12.80
.250
6.35
.505 12.83
NOTES:
1.
Dimensions are in inches.
2.
Metric equivalents are given for information only.
3.
For dimension A, see tables I and III.
4.
Metric equivalents are in parentheses.
5.
Wrench flats (if required for assembly) are to accommodate standard wrench opening in accordance with
FED-STD-H28, appendix 10.
6.
All undimensioned pictorial representations are for reference purposes only.
7.
Receptacle not recommended for use on panels with greater than .078 (1.98 mm) maximum thickness.
8.
Series TNC, socket contact interface in accordance with MIL-STD-348.
9.
Dimension A defines the maximum length of the connector when assembled to the appropriate cable.

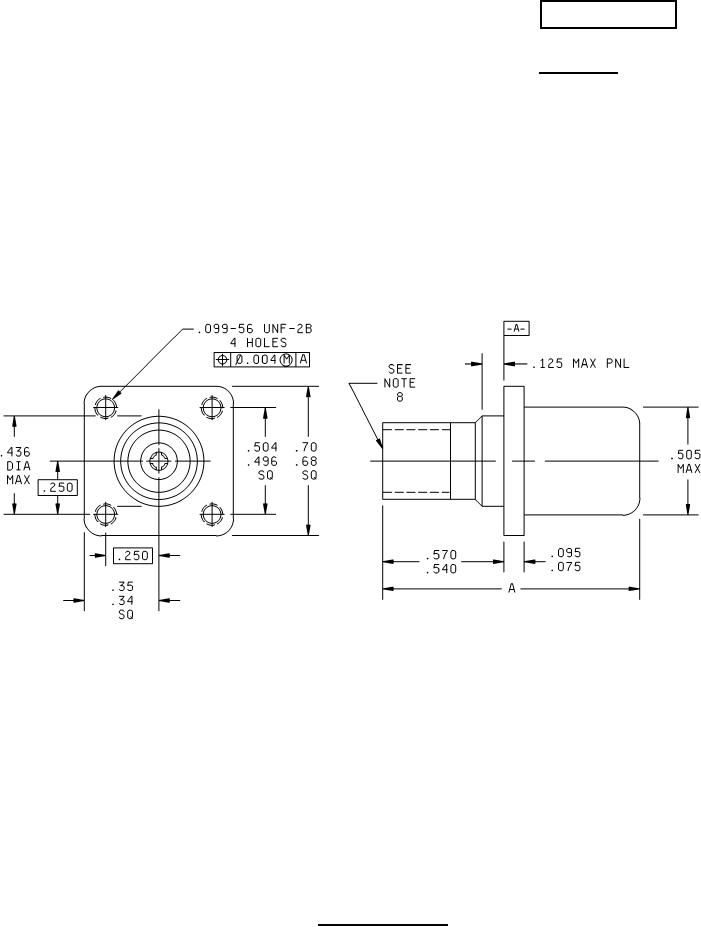

FIGURE 1. General configuration.
AMSC N/A
FSC 5935
