MIL-PRF-39012/34B
Inches
mm
Inches
mm
Inches
mm
.022
.56
.159
4.04
.4375
11.11
.062
1.57
.215
5.46
.495
12.57
.087
2.21
.218
5.54
.500
12.70
.099
2.51
.221
5.61
.505
12.83
.104
2.64
.368
9.35
.508
12.90
.114
2.90
.375
9.53
.510
12.95
.153
3.89
.380
9.65
.620
15.75
.156
3.96
.384
9.75
.630
16.00
NOTES:
1. Dimensions are in inches.
2. For dimensions A, B, and C see table I.
3. Dimension B is the largest overall diameter of the connector.
4. Metric equivalents (to the nearest .01 mm) are given for general information only.
5. All undimensioned pictorial configurations are for reference purposes only.

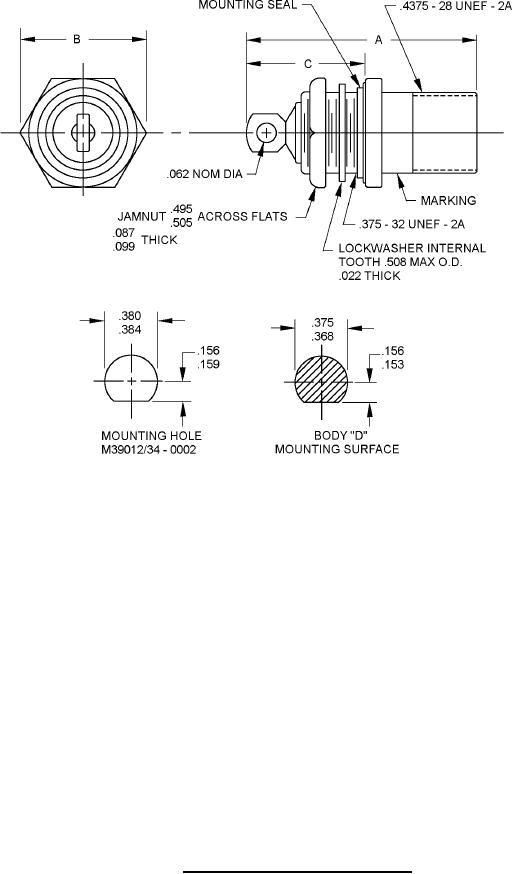

FIGURE 1. General configuration Continued.
2
