MIL-PRF-39012/55H

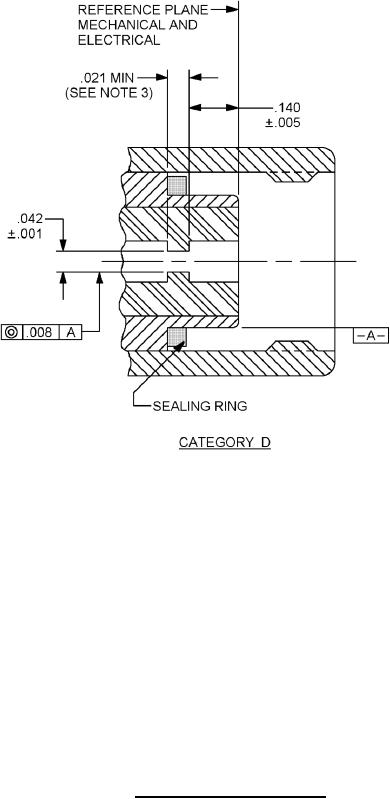

Insulator dimensions for category D only
Inches
mm
.001
0.03
.005
0.13
.008
0.20
.021
0.53
.042
1.07
.140
3.56
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Chamfer is optional, if chamfer is used put chamfer on a 30º maximum.
4. Three holes .016 (0.41 mm) minimum diameter, equally spaced, are required for safety wiring after
mating. Location on coupling nut optional.
FIGURE 2. Category D captivation detail.
2
