MIL-PRF-39012/75C
TABLE I. Dash numbers, cross-reference, and dimensions Continued.
* Cable to be used when performing tests requiring cable except as in notes @ and ^.
@ Cable to be used for the +200°C thermal shock tests.
^ These are not 50 ohm cables, therefore, when attached to the specified connectors, VSWR,
RF leakage and insertion loss are not applicable.
~ M22520/5-33 closure B or M22520/5-03 closure B.
& M22520/5-35 closure B or M22520/5-03 closure A.
$ M22520/5-41 closure B or M22520/5-05 closure B.
M22520/5-09 closure A.
% Caution is directed to the application of this cable above 400 MHz. Attenuation is tested only at
400 MHz. SRL and power handling capabilities are not stipulated herein.
Inches
mm
.010
.254
.020
.508
.200
5.08
.320
8.13
.380
9.65
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.

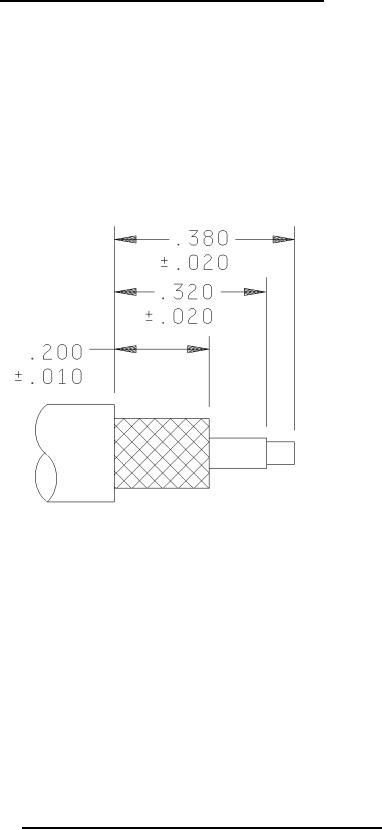

FIGURE 2. Cable stripping dimensions for category C connectors.
4
