MIL-PRF-49142 Connector, Triaxial, Radio Frequency General Specification ForThis specification covers the general requirements and tests for radio frequency \(RF\), triaxial, connectors \(see 6.1\).

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12


MIL-PRF-49142B
NOTES:
1. Bayonets are dimensioned in accordance with MIL-STD-348, unless otherwise specified.
2. All angle tolerances are ±1°.

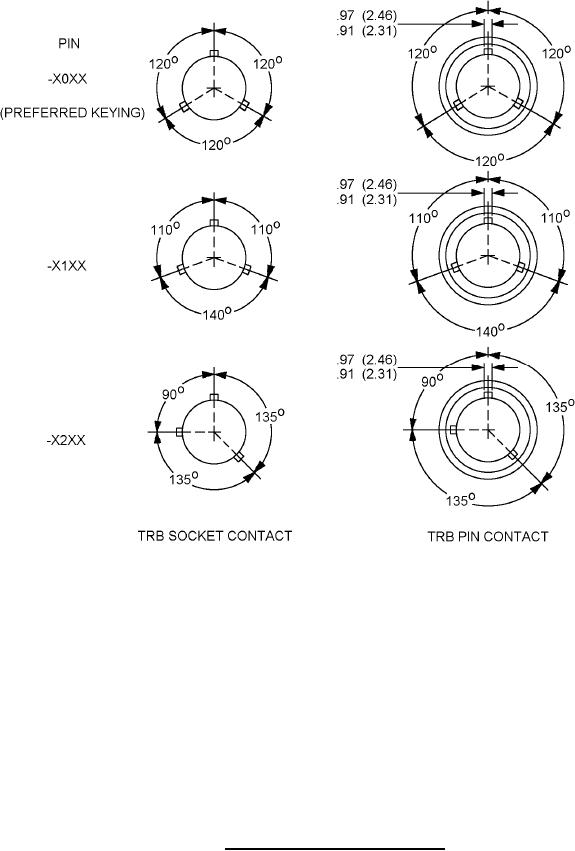

FIGURE 1. Keying configurations (TRB) only.
