INCH-POUND
MIL-PRF-55339/50B
10 January 2005
SUPERSEDING
MIL-PRF-55339/50A
28 February 1979
PERFORMANCE SPECIFICATION SHEET
ADAPTER, CONNECTOR, COAXIAL, RADIO FREQUENCY
(WITHIN SERIES TNC JACK TO TWO SERIES TNC JACKS), CLASS 2 "T" JAMNUT MOUNT
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-PRF-55339.
Inches
mm
Inches
mm
.022
0.56
.505
12.83
.055
1.40
.510
12.95
.104
2.64
.620
15.75
.114
2.89
.630
16.00
.125
3.18
.695
17.65
.218
5.54
.715
18.16
.221
5.61
.750
19.05
Reference
Series
Contact
.4375 11.112
1.312
33.32
A
TNC
Socket
.500
12.7
1.375
34.92
B
TNC
Socket

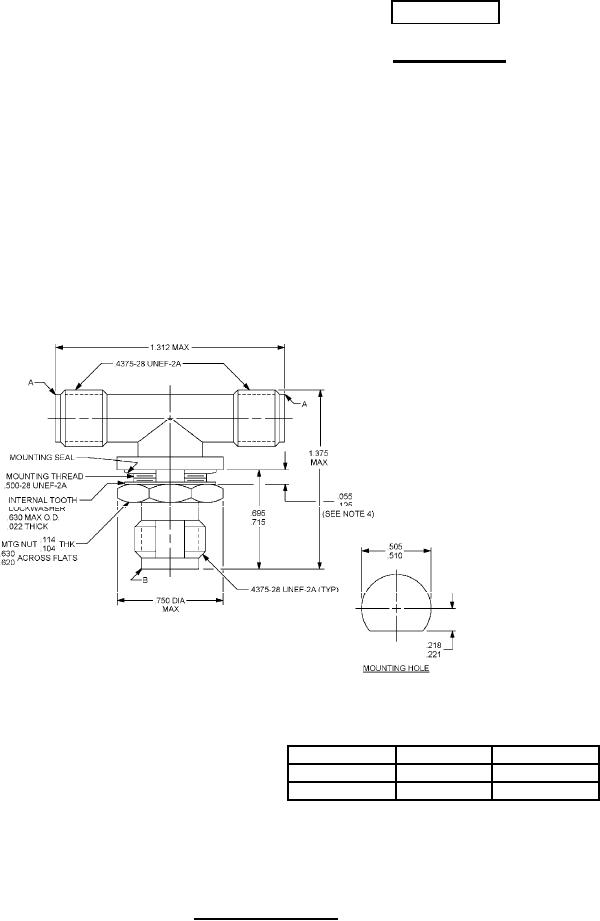

FIGURE 1. General configuration.
