MIL-PRF-55339C

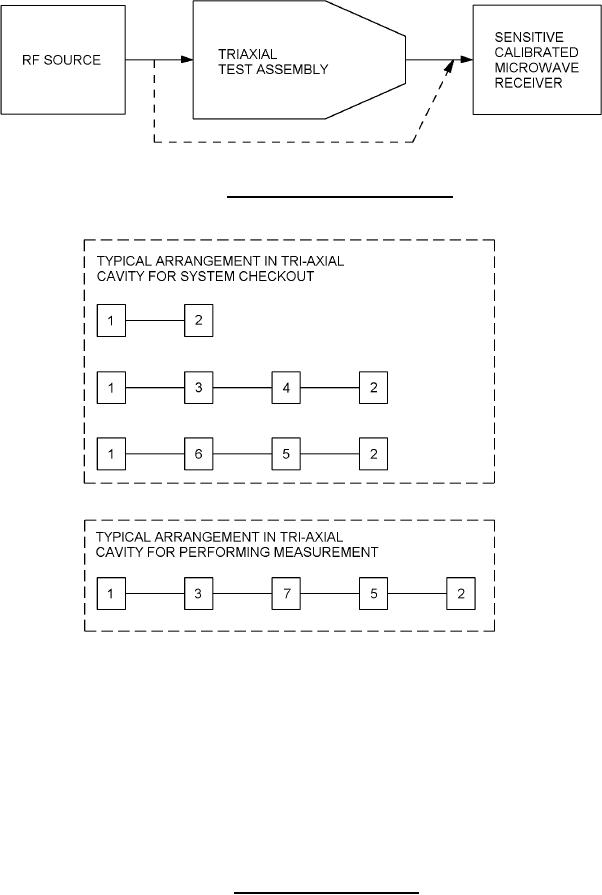

FIGURE 3. Triaxial test set-up for RF leakage.

ITEM:

1. Cable connector with hermaphroditic output fitting.

2. Cable connector with hermaphroditic input fitting compatible with output fitting of item 1.

3. Standard test connector with hermaphroditic input fitting compatible with output fitting of item 1,

and output interface compatible with input interface of adapter to be tested.

4. Standard test connector of opposite sex to item 3, and hermaphroditic output fitting compatible

with input fitting of item 2.

5. Standard test connector with hermaphroditic output fitting compatible with input fitting of item 2,

and input interface compatible with output interface of adapter to be tested.

6. Standard test connector of opposite sex to item 5, and hermaphroditic input fitting compatible with

output fitting of item 1.

7. Adapter to be tested.

FIGURE 4. Typical triaxial arrangement.
