MIL-PRF-55339C
Inch
mm
.12
3.05
2.50
63.5
3.50
88.9
8.00
203.2

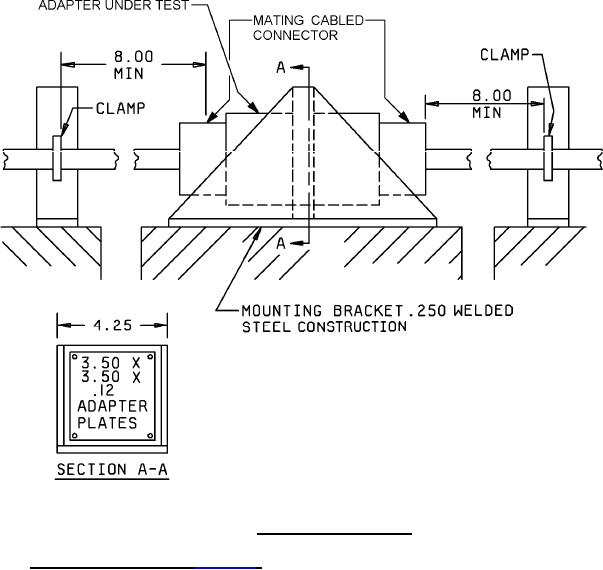

FIGURE 7. Vibration testing set-up.
213 of MIL-STD-202. The following exceptions and details shall apply:
a. Mating connector � Cabled connector per MIL-PRF-39012.
b. Mounting � Panel or bulkhead adapters shall be mounted by normal means. All other
adapters shall be rigidly clamped to the shock table.
Test condition letter � As specified (see 3.1). Three shocks in each of three mutually
c.
perpendicular planes shall be applied; one of which shall be parallel to the axis of the
adapter.
d. Measurements during shock � Continuity shall be monitored with a detector capable of
detecting interruptions of 1 microsecond or greater in duration.
23
