MS14054F
Quantity |
Contact |
Size |
Socket SAE-AS39029/49 M39029- |
Pin SAE-AS39029/48 M39029- |
1 |
A |
6 |
329 |
317 |
1 |
G, N |
6N |
329 (see note 6) |
318 |
NOTES:
1. Dimensions are in inches. Metric equivalents are given for information only. Unless otherwise specified, tolerance is ± .002 (.05 mm).
2. Unless otherwise specified, front face of pin insert pattern is shown. Socket inserts are the reverse.
3. -04-Cable IPCEA 2-NO 8 conductor round type G.
4. -05-Cable-C0-02-HDF (2/6-2/10R) 0930 in accordance with MIL-DTL-3432.
5. Mark 28-04 on 28-05 insert. Trademark and 28-( ) shall appear in available space. Contact identifying letter shall be located so as to identify relative contact.
6. Only the pin contact is lengthened and has the N (neutral) designation. The mating socket contact is the same as the power contact.

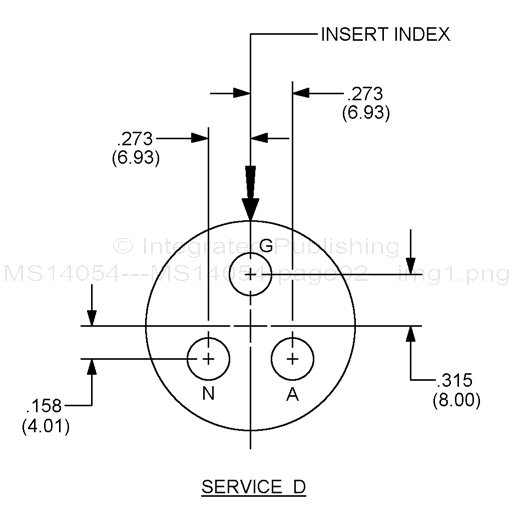

FIGURE 2. AC single phase two wire grounding, -04 and -05 insert arrangements, service D.
2
