MS14054F
Quantity |
Contact |
Size |
Socket SAE-AS39029/49 M39029- |
Pin SAE-AS39029/48 M39029- |
3 |
A, B, C |
6 |
329 |
317 |
2 |
N, G |
6N |
329 (see note 6) |
318 |
NOTES:
1. Dimensions are in inches. Metric equivalents are given for information only. Unless otherwise specified, tolerance is ± .002 (.05 mm).
2. Unless otherwise specified, front face of pin insert pattern is shown. Socket inserts are the reverse.
3. -12-Cable IPCEA 4-NO 8 conductor round type G.
4. -13-Cable-C0-04-HDF (4/6-4/12R) 1090 in accordance with MIL-DTL-3432.
5. Mark 28-12 on 28-13 insert. Trademark and 28-( ) shall appear in available space. Contact identifying letter shall be located so as to identify relative contact.
6. Only the pin contact is lengthened and has the N (neutral) designation. The mating socket contact is the same as the power contact.

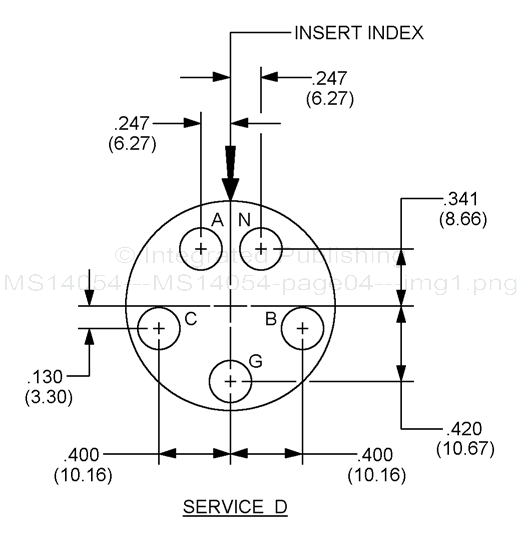

FIGURE 4. AC three phase four wire grounding, -12 and -13 insert arrangements, service D.
