MS24288E
Inches |
mm |
Inches |
mm |
.113 .120 .125 .161 .188 .2145 .250 .286 |
2.87 3.05 3.18 4.09 4.78 5.448 6.35 7.26 |
.3575 .376 .429 .500 .5005 .572 .6435 .715 |
9.080 9.55 10.90 12.70 12.712 14.53 16.345 18.16 |
1 size coax contact, 4 size 16 contacts, and 36 size 20 contacts
NOTES
1. Dimensions are in inches
2. Metric equivalents are given for information only.
3. Unless otherwise specified the tolerance is ±.002 (0.05 mm).
4. Rear face of pin insert shown socket insert opposite.
5. Contact identification shall be marked on rear surfaces. Characters shown are for rear face of pin insert.
6. The A2 contact shall be marked on face of the socket insert and the E2 contact shall be marked on the face of the pin insert.

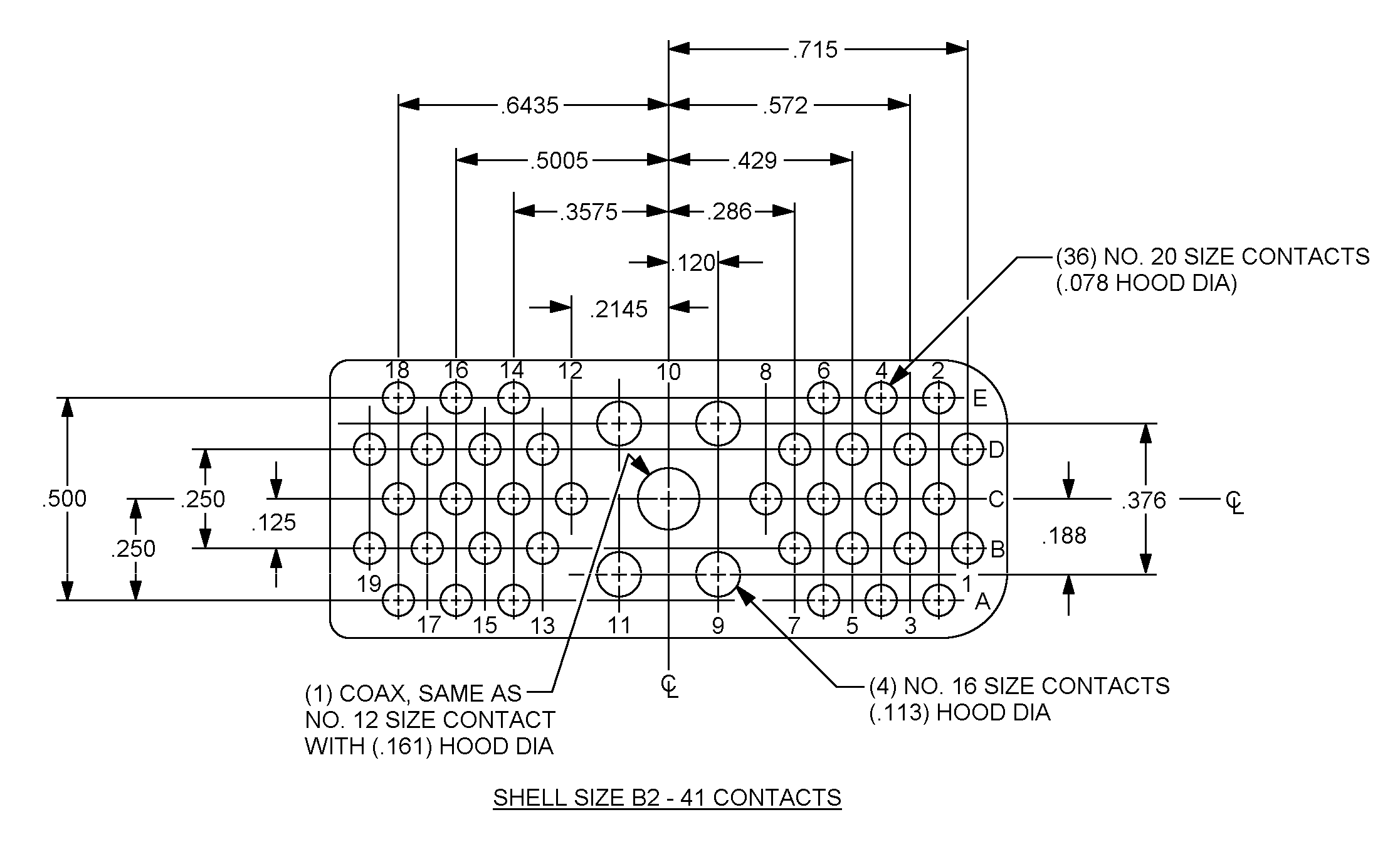

FIGURE 5. Shell size 82.
9
