MS24288E
NOTES
1. Dimensions are in inches
59 size 16 contacts
2. Metric equivalents are given for information only.
3. Unless otherwise specified the tolerance is ±.002 (0.05 mm).
4. Rear face of pin insert shown socket insert opposite.
5. Contact identification shall be marked on rear surfaces. Characters shown are for rear face of pin insert.
6. The A2 contact shall be marked on face of the socket insert and the D2 contact shall be marked on the face of the pin insert.
7. Use SAE-AS39029/54, SAE-AS39029/55, or MS27399 as applicable.

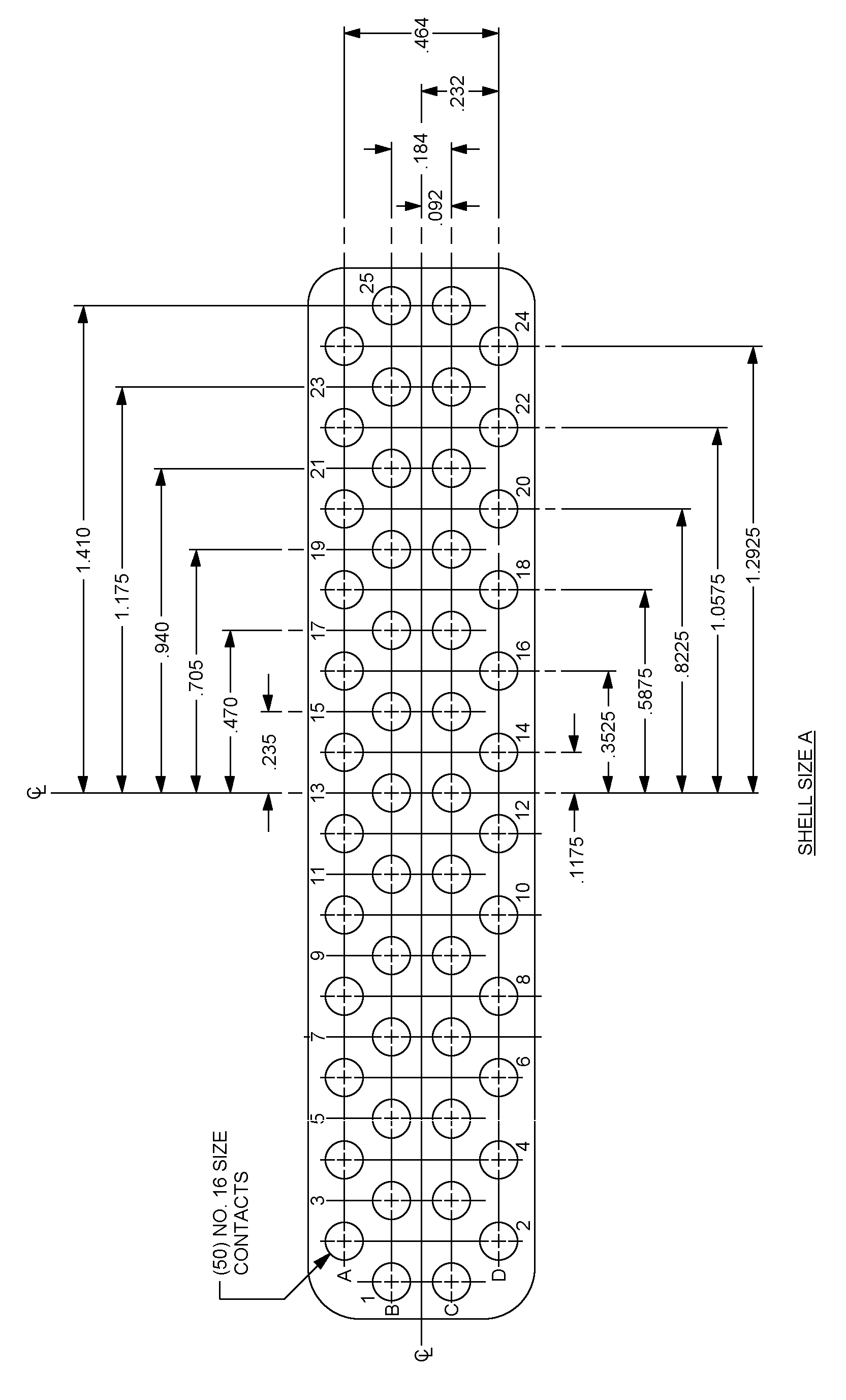

FIGURE 8. Shell size A5.
