MS24288E
26 size 16 contacts
Inches |
mm |
.092 .113 .1175 .184 .232 .235 .3525 .464 .470 .5875 .705 |
2.34 2.87 2.98 4.67 5.89 5.97 8.95 11.79 11.94 14.923 19.05 |
NOTES
1. Dimensions are in inches
2. Metric equivalents are given for information only.
3. Unless otherwise specified the tolerance is ±.002 (0.05 mm).
4. Rear face of pin insert shown socket insert opposite.
5. Contact identification shall be marked on rear surfaces. Characters shown are for rear face of pin insert.
6. The A2 contact shall be marked on face of the socket insert and the C2 contact shall be marked on the face of the pin insert.

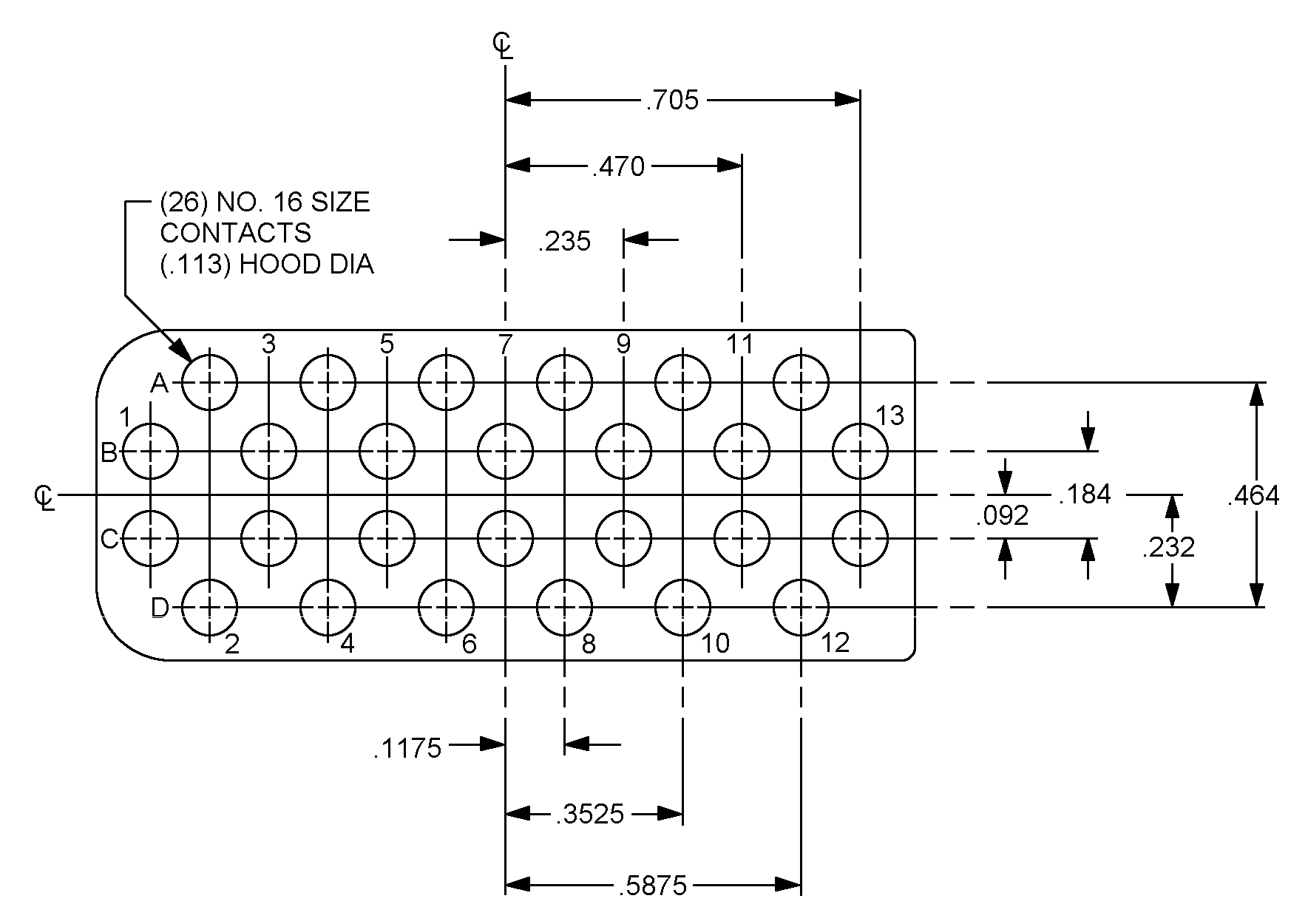

FIGURE 9. Shell size 84.
13
