MS27266B
Inches |
mm |
Inches |
mm |
.003 .004 .005 .063 .094 .188 .375 .406 .438 .500 .563 |
.076 .102 .127 1.588 2.381 4.763 9.525 10.319 11.113 12.700 14.288 |
.594 .656 .687 .718 .750 .813 1.000 2.750 6.781 |
15.081 16.669 17.450 18.237 19.050 20.638 25.40 69.85 172.24 |
NOTES:
1. For use with PIN MS27266-1.
2. Procurement specification MIL-DTL-38159.
3. Material: Copper alloy - See procurement specification.
4. Finish: See procurement specification.
5. Unless otherwise specified, machined surfaces 125 √ or better in accordance with ASME B46.1.
6. Remove all burrs and break all edges.
7. All dimensions shown are for finished part after plating.
8. Dimensions in inches. Unless otherwise specified, tolerances are ± 0.005 inch.
9. All diameters must be concentric to each other within 0.004 TIR.

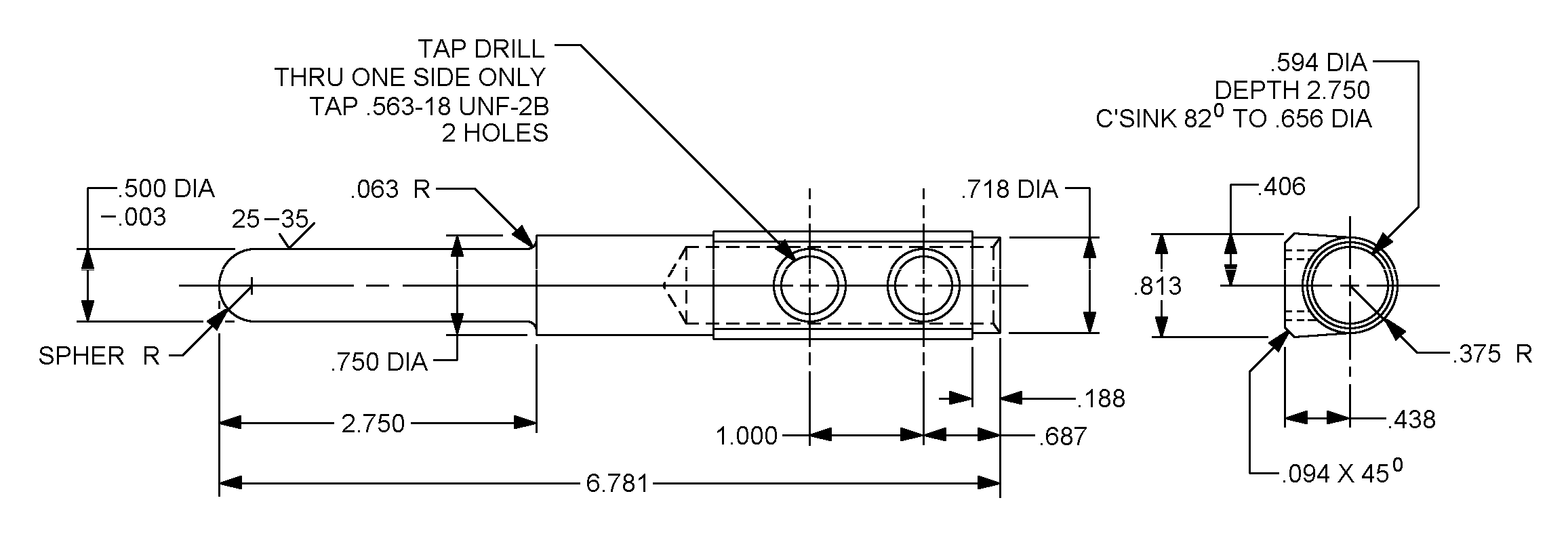

FIGURE 2. Contact, electrical, plug connector, ramp power, 416/240 volts, large, male.
3
