MS272668
Inches |
mm |
.002 .004 .005 .031 .216 .313 1.750 5.313 |
.051 .102 .127 .794 5.482 7.938 44.45 134.94 |
NOTES:
1. For use with MS27266-1.
2. Procurement specification MIL-DTL-38159.
3. Material: 8rass, in accordance with ASTM-836/836M, ASTM-8121/8121M or
ASTM-8124/8124M. See procurement specification.
4. Finish: See procurement specification.
5. Unless otherwise specified, machined surfaces 125 √ or better in accordance with ASME 846.1.
6. Remove all burrs and break all edges.
7. All dimensions shown are for finished part after plating.
8. Dimensions in inches. Unless otherwise specified, tolerances ± 0.005 inch.
9. All diameters must be concentric to each other within 0.004 TIR.

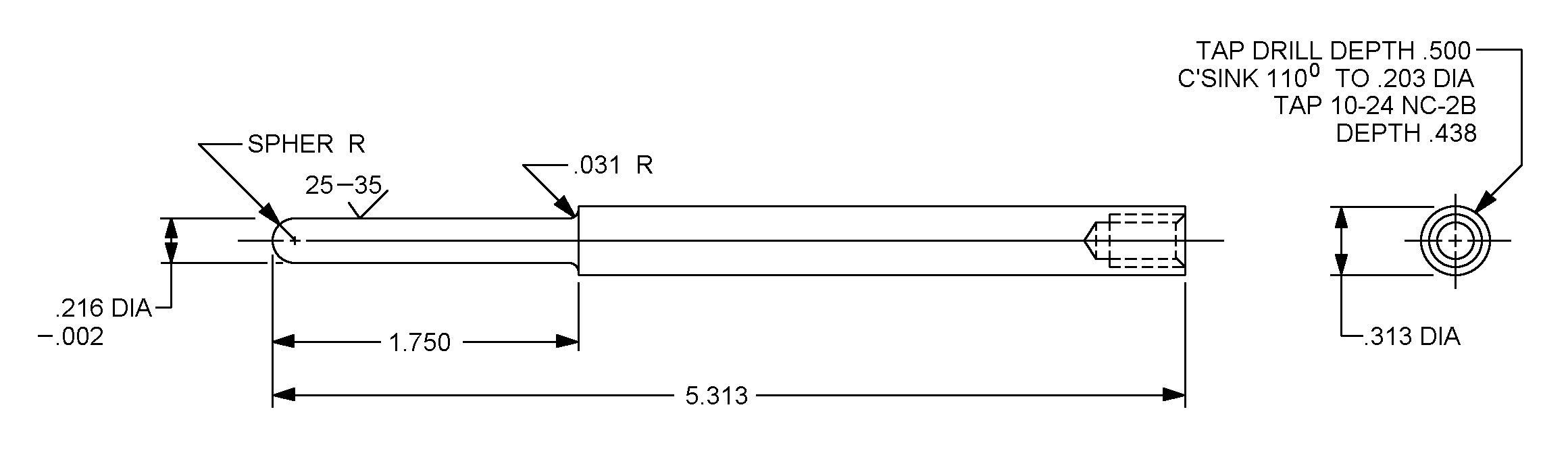

FIGURE 3. Contact, electrical plug connector, ramp power, 416/240 volts, small, male.
