MS3110F
|
Shell size |
L max overall length |
v max closed |
x ID gland seal min range |
Y dia max |
zz screw threads |
Yz (see note 4) Lockwashers NASM35338 or NASM35333 types |
|
closed |
open |
||||||
8 |
2.271 (57.68) |
.157 (3.99) |
.169 (4.29) |
.230 (5.84) |
.828 (21.03) |
6-32 UNG |
NASM35338 - 98 or -41 NASM35333 -105 or -37 |
10 |
.187 (4.75) |
.205 (5.21) |
.312 (7.92) |
.891 (22.63) |
|||
12 |
2.411 (61.24) |
.281 (7.14) |
.338 (8.59) |
.442 (11.23) |
1.016 (25.81) |
||
14 |
2.599 (66.01) |
.325 (8.26) |
.416 (10.57) |
.539 (13.69) |
1.161 (29.49) |
||
16 |
2.943 (74.75) |
.356 (9.04) |
.550 (13.97) |
.616 (15.65) |
1.203 (30.56) |
||
18 |
3.172 (80.57) |
.456 (11.58) |
.600 (15.24) |
.672 (17.07) |
1.469 (37.31) |
8-32 UNG |
NASM35338 -B8L or -8L -99 or -42 NASM35333 -106 or -38 |
20 |
3.610 (91.69) |
.519 (13.18) |
.635 (16.13) |
.747 (18.97) |
|||
22 |
3.766 (95.66) |
.670 (17.02) |
.846 (21.49) |
1.656 (42.06) |
|||
24 |
3.985 (101.22) |
.657 (16.69) |
.760 (19.30) |
.854 (21.69) |
1.750 (44.45) |
||
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. True position (TP) tolerances specified are in accordance with ASME Y14.5M.
4. Lockwashers may be captivated.

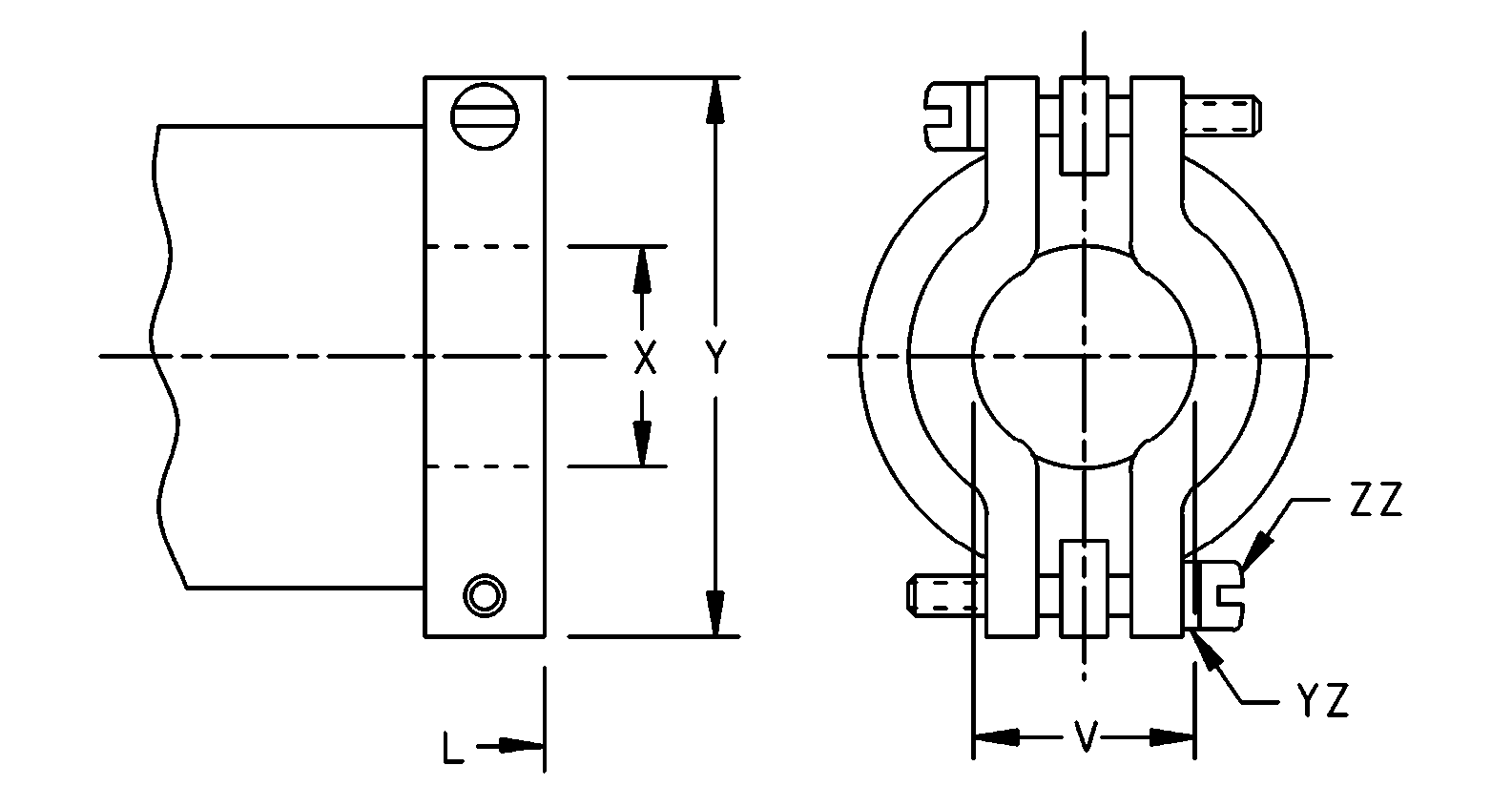

FIGURE 4. Receptacle, rear accessories configurations, class J.
9
