MS3110F
Shell size |
L max overall length |
x dia min |
y dia max |
pp min |
8 |
1.453 (36.91) |
.317 (8.05) |
.608 (15.44) |
.250 (6.35) |
10 |
.434 (11.02) |
.734 (18.64) |
||
12 |
.548 (13.92) |
.858 (21.79) |
||
14 |
.673 (17.09) |
.984 (24.99) |
||
16 |
.798 (20.27) |
1.110 (28.19) |
||
18 |
.899 (22.83) |
1.234 (31.34) |
||
20 |
1.672 (42.47) |
1.024 (26.01) |
1.360 (34.54) |
|
22 |
1.149 (29.18) |
1.484 (37.69) |
||
24 |
1.734 (44.04) |
1.274 (32.36) |
1.610 (40.89) |
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. True position (Tp) tolerances specified are in accordance with ASME y14.5M.

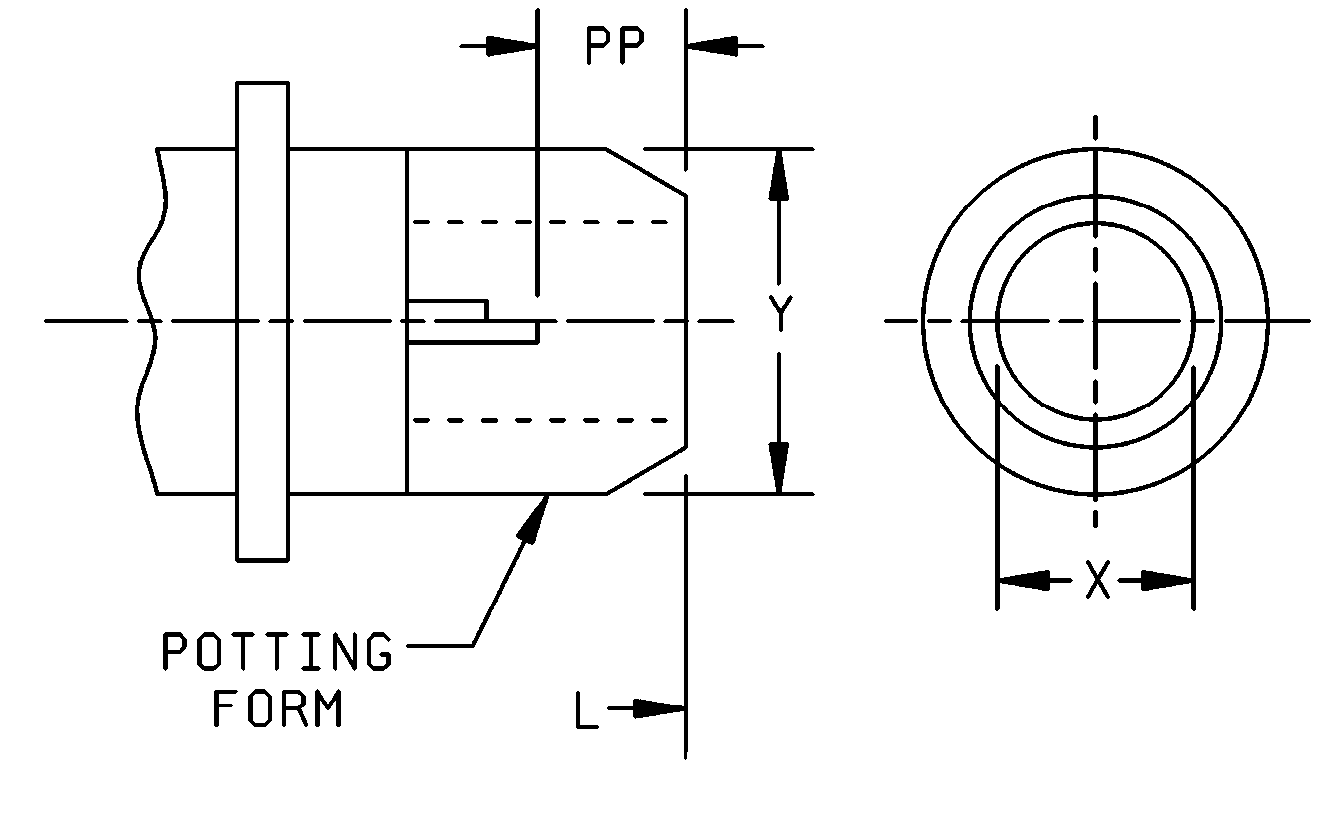

FIGURE 5. Receptacle, rear accessories configurations, class p.
10
