MS33800E
STYLE II
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance shall be ± .005 (.127 mm) on decimals, ±1< on angles, and
± .015 (.381 mm) for rubber products.
Inches |
mm |
Inches |
mm |
Inches |
mm |
.002 |
.051 |
.125 |
3.175 |
.394 |
10.010 |
.003 |
.076 |
.137 |
3.480 |
.470 |
11.938 |
.020 |
.508 |
.157 |
3.988 |
.690 |
17.526 |
.060 |
1.524 |
.187 |
4.750 |
.700 |
17.780 |
.065 |
1.651 |
.218 |
5.580 |
.725 |
18.415 |
.079 |
2.007 |
.271 |
6.883 |
||
.118 |
3.000 |
.344 |
8.738 |

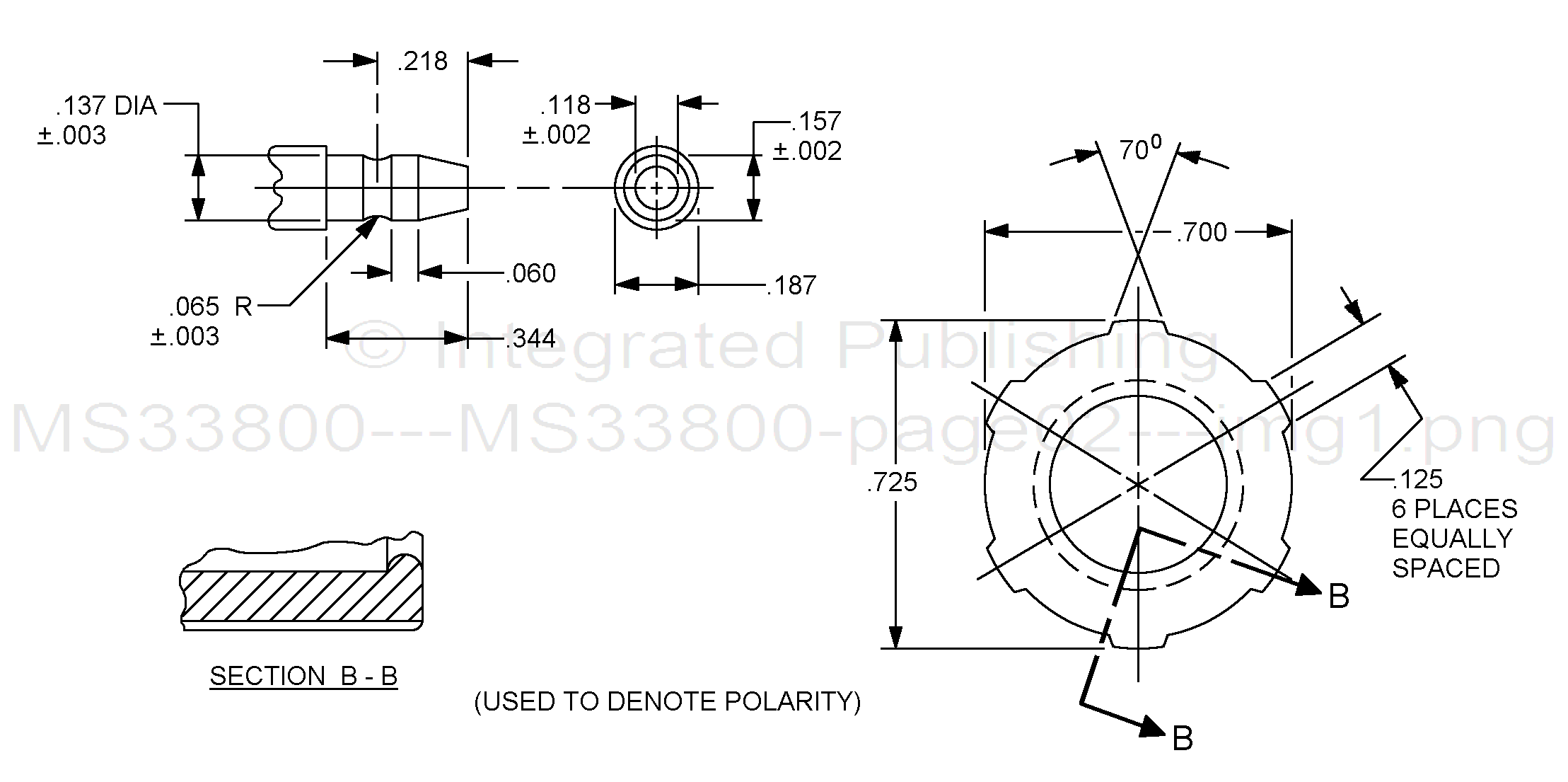

FIGURE 1. Connector, receptacle (small), imperial dimensions (inch) - Continued.
2
