MS33800E
STYLE II
mm |
Inches |
mm |
Inches |
mm |
Inches |
.051 |
.0020 |
3.00 |
.0398 |
6.88 |
.2708 |
.070 |
.0027 |
3.18 |
.3756 |
10.00 |
.3937 |
.076 |
.0029 |
3.48 |
.1370 |
11.94 |
.4700 |
.51 |
.0200 |
3.99 |
.1570 |
17.53 |
.6902 |
1.52 |
.0598 |
4.75 |
.1870 |
17.78 |
.7000 |
1.65 |
.0649 |
5.54 |
.2181 |
18.42 |
.7252 |
2.00 |
.0787 |
6.74 |
.2653 |
NOTES:
1. Dimensions are in millimeters.
2. Imperial (inch) dimensions are given for general information only.
3. Unless otherwise specified, tolerance shall be ± .13 (.005 inches) on decimals, ±1< on angles, and ±
.38 (.0150 inches) for rubber products.

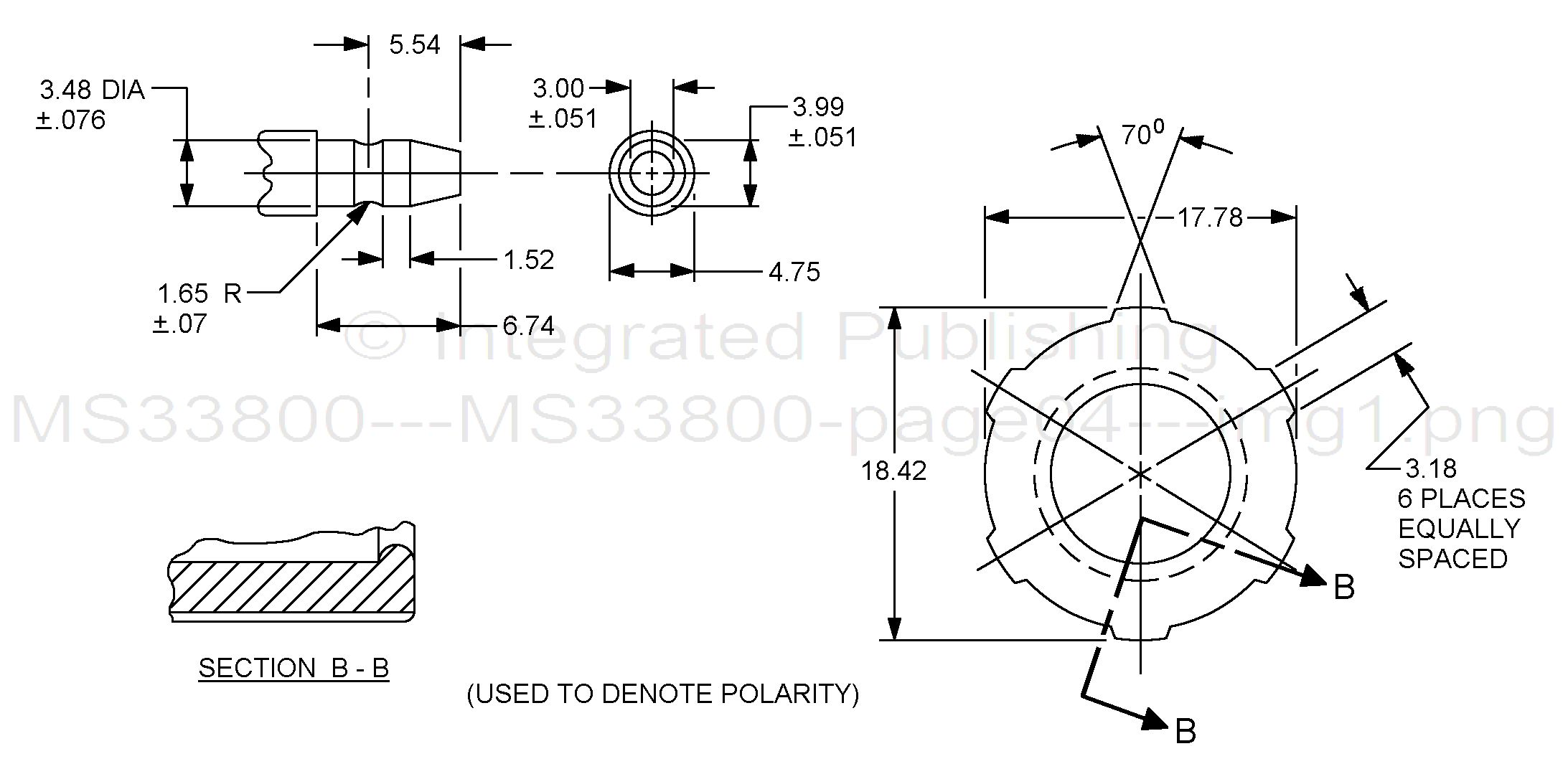

FIGURE 2. Connector, receptacle (large), metric - Continued.
