INCH-POUND
MS90555G
21 November 2012
SUPERSEDING MS90555F
13 March 2009
DETAIL SPECIFICATION SHEET
CONNECTOR, RECEPTACLE, ELECTRICAL, WALL MOUNTING, CLASS L (POWER SOURCE RECEPTACLE)
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-22992.
Inches |
mm |
.005 |
0.13 |
.010 |
0.25 |
.011 |
0.28 |
.016 |
0.41 |
.031 |
0.79 |
.164 |
4.17 |
.312 |
7.92 |
.531 |
13.49 |

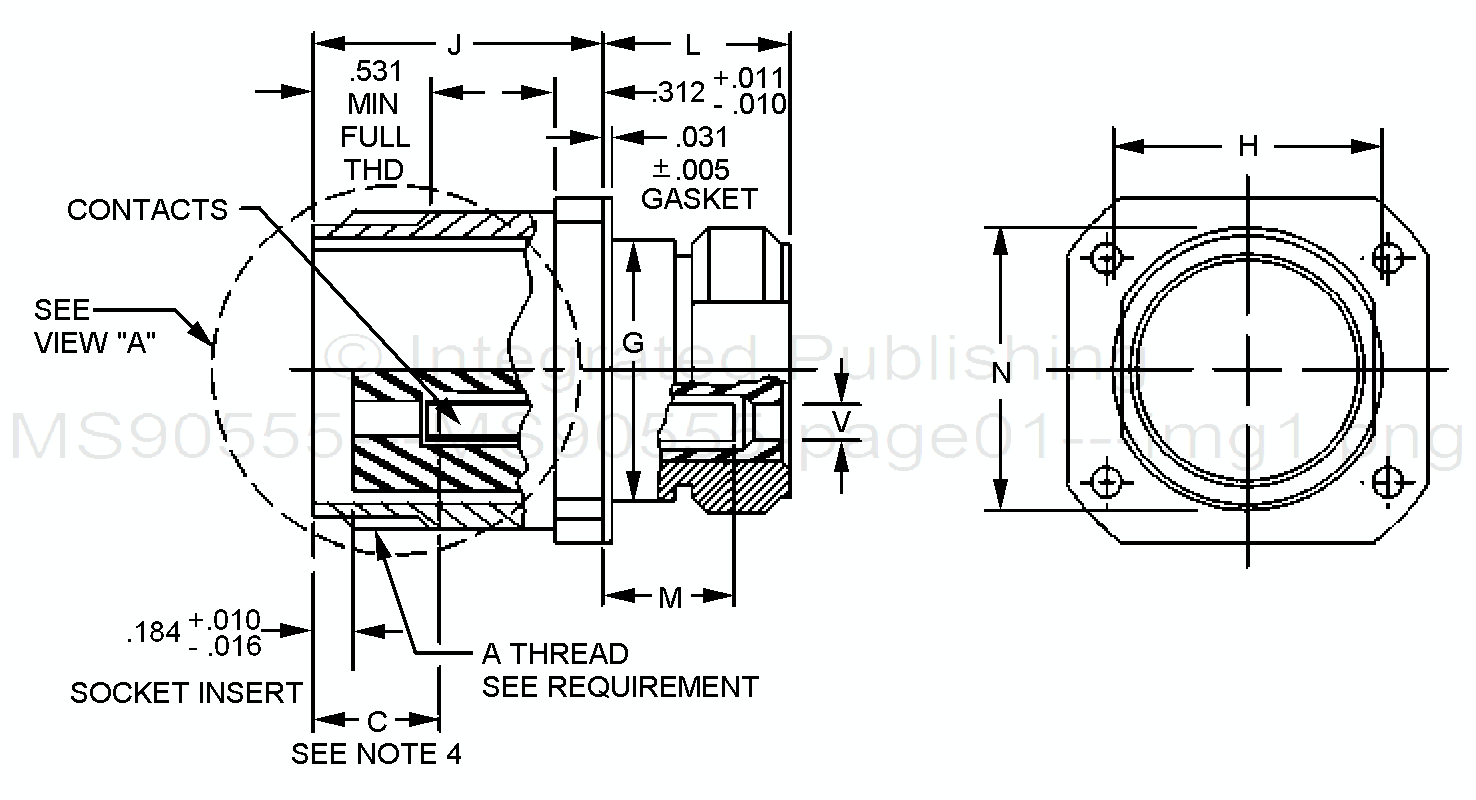

FIGURE 1. Receptacle.
AMSC N/A FSC 5935
