MS90555G
Contact size |
u dia |
v dia wire sealing range |
4 I 0 |
.510 (12.95) I .515 (13.08) |
.700 (17.78) I .790 (20.07) |
2 I 0 |
.416 (10.57) I .421 (10.69) |
.530 (13.46) I .655 (16.64) |
1 I 0 - 1 |
.367 (9.32) I .372 (9.45) |
.457 (11.61) I .585 (14.86) |
4 |
.235 (5.97) I .240 (6.10) |
.356 (9.04) I .430 (10.92) |
6 |
.188 (4.78) I .193 (4.90) |
.300 (7.62) I .360 (9.14) |
Inches |
mm |
.020 |
0.508 |
.025 |
0.635 |
.100 |
2.54 |

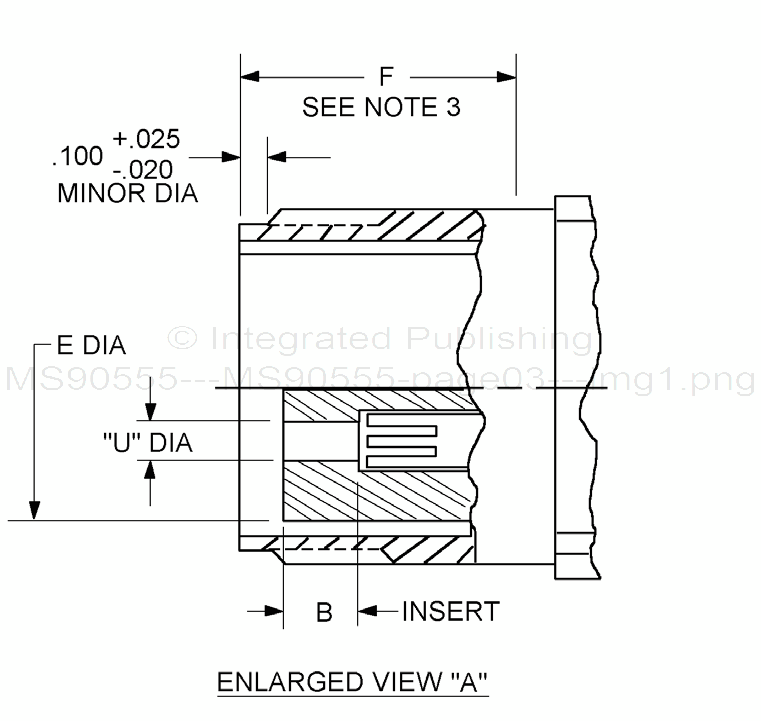

FIGuRE 1. Receptacle - Continued.
3
