DETAIL SPECIFICATION SHEET
INCH-POUND
MS90564H
21 November 2012
SUPERSEDING MS90564G
7 March 2007
COVER, ELECTRICAL CONNECTOR, PLUG, CLASS L
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-22992.
Inches |
mm |
.020 |
0.508 |
.025 |
0.635 |
.100 |
2.54 |
.531 |
13.487 |

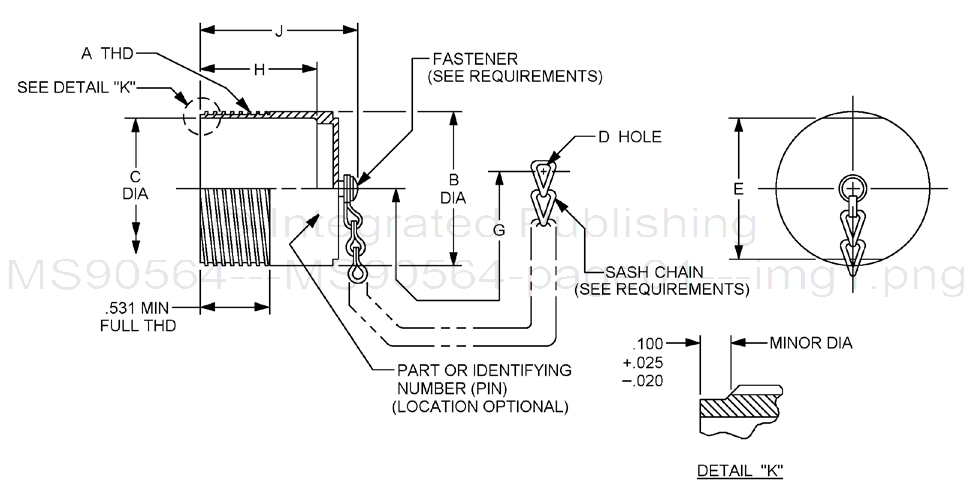

FIGURE 1. Dimensions and configuration.
AMSC N/A FSC 5935
