MIL-DTL-12883/44D

Inches

1.3

.05

2.36

.093

2.46

.097

2.84

.112

4.17

.164

6.35

.250

10.46

.412

12.70

.500

20.96

.825

22.35

.880

27.31

1.075

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for general information only.

3. Unless otherwise specified, tolerances are + .005 (0.13 mm) for three place decimals and + .01

(0.25 mm) for two place decimals.

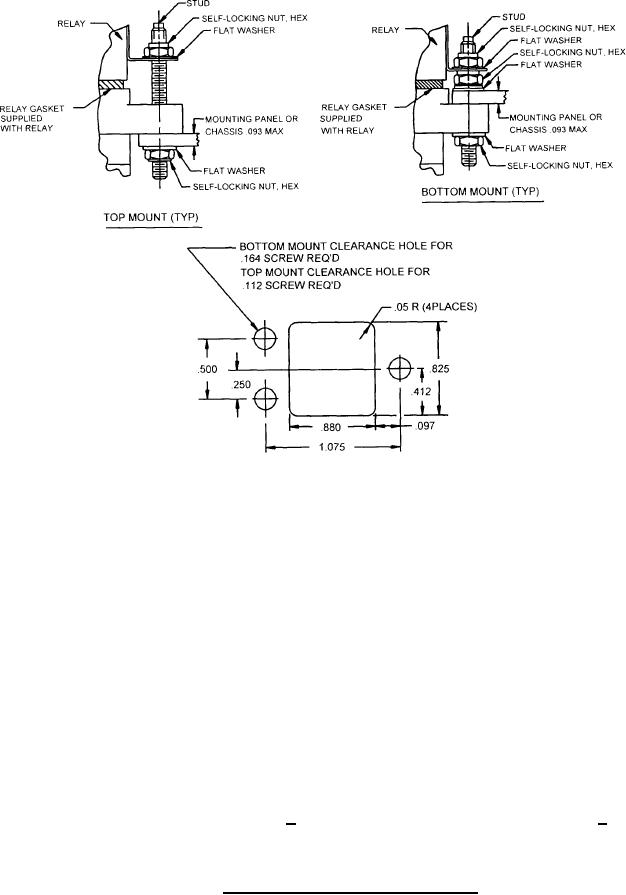

FIGURE 2. Mounting (hardware and panel cutout).
