MIL-DTL-12883/45D
Inches
mm
0.03
.001
0.05
.002
0.13
.005
0.38
.015
0.94
.037
1.3
.05
1.35
.053
1.57
.062
1.60
.063
1.90
.075
2.16
.085
2.0
.08
2.24
.088
2.3
.09
2.69
.106
2.84
.112
3.81
.150
4.17
.164
4.75
.187
4.83
.190
7.11
.280
7.37
.290
7.62
.300
9.52
.375
9.98
.39
11.43
.450
13.33
.525
14.48
.570
16.89
.665
17.65
.695
19.30
.760
20.3
.80
27.31
1.075
36.50
1.437
(-04, -05, and 06)
NOTES:
1. Dimensions are in inches.
2. Unless otherwise specified, tolerance is + .005 inch (0.13 mm) for three place decimals and + .01
inch (0.25 mm) for two place decimals.
3. Marking shall be characters which are molded .035 inch (0.89 mm) minimum. Ink marking optional
(see MIL-STD-1285).
4. Point of electrical contact engagement, from mating face of socket insulator to the socket contact.
-01 through 03, .093 inch (2.36 mm).
-04 through 06, .113 inch (2.87 mm).
5. Metric equivalents are given for general information only.
6. The configuration of the stud tip shall be optional provided it meets all requirements of this
specification.

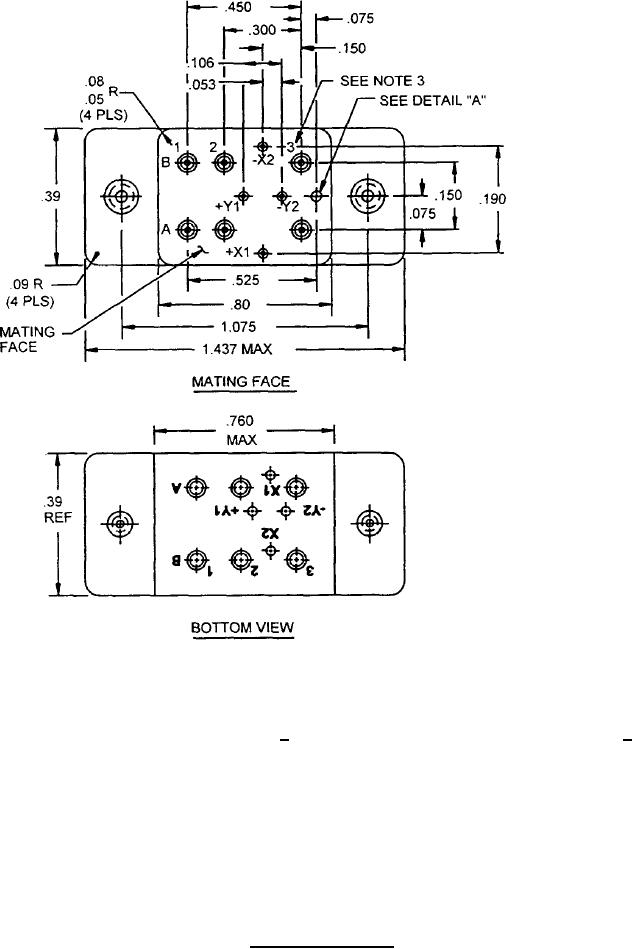

FIGURE 2. Socket configurations - Continued.
3
