MIL-DTL-12883-45 Sockets, Plug-In Electronic Components, For Relays, For 2-Pole, 5 Amperes \(Mil-Prf-6106 And Mil-Prf-83536\)

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9

MIL-DTL-12883/45D

Inches

2.36

.093

.097

2.46

.212

5.38

.425

10.80

.880

22.35

1.075

27.31

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for general information only.

3. Unless otherwise specified, tolerances are + .005 (0.13 mm) for three place decimals and + .01

(0.25 mm) for two place decimals.

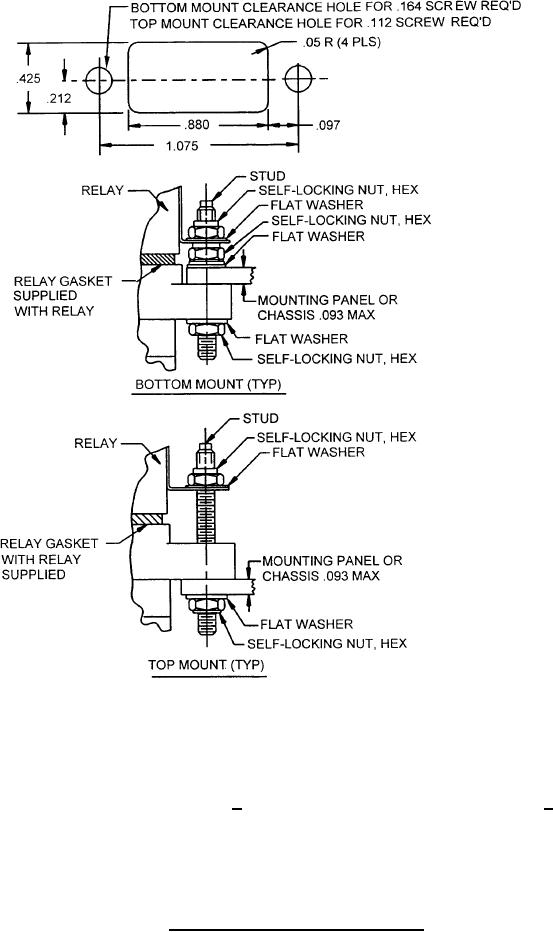

FIGURE 2. Mounting (hardware and panel cutout).
