MIL-DTL-12883/46D

TOP MOUNT (TYP)

Inches

.05

1.3

.093

2.36

.097

2.46

.112

2.84

.164

4.17

.250

6.35

.412

10.46

.500

12.70

.825

20.96

.880

22.35

1.075

27.31

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for information only.

3. Unless otherwise specified, tolerances are + .005 inch (0.13 mm) for three place decimals and + .01

(0.25 mm) for two place decimals.

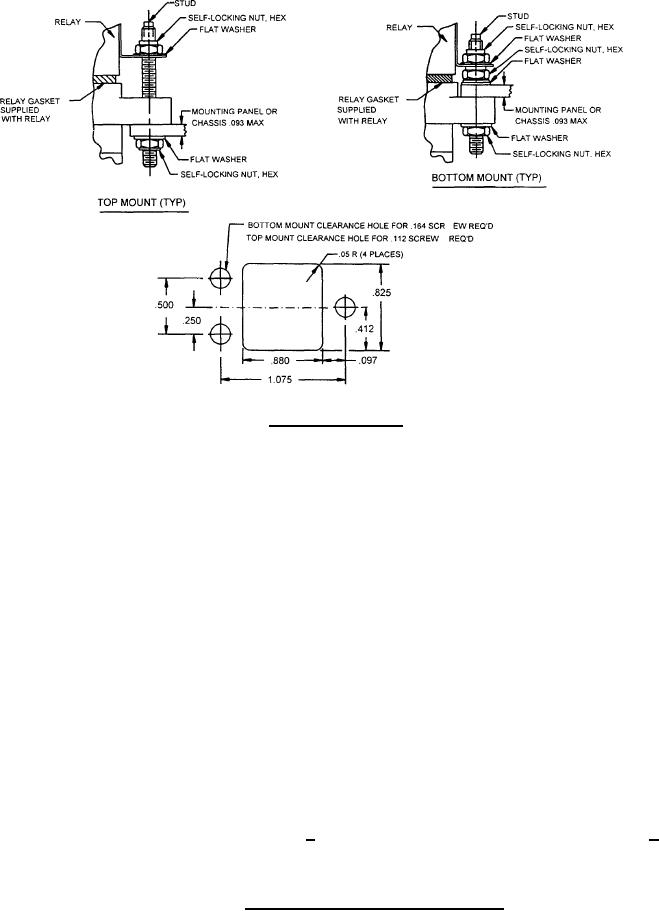

FIGURE 4. Socket mounting (hardware and panel).
