MIL-DTL-24308/36 Connectors, Electric, Rectangular, Miniature, Combination Insert Arrangement, Receptacle, Socket Contacts, Shell Size 4, Size 20 Signal Contacts and Size 8 Power and Shielded, Class G, M, N and D

1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21 - 22 - 23 - 24 - 25 - 26


MIL-DTL-24308/36
M24308/36-501, -502, -507, -508
M24308/36-503, -504, -505, -506, -509, -510, -511, -512
27W2

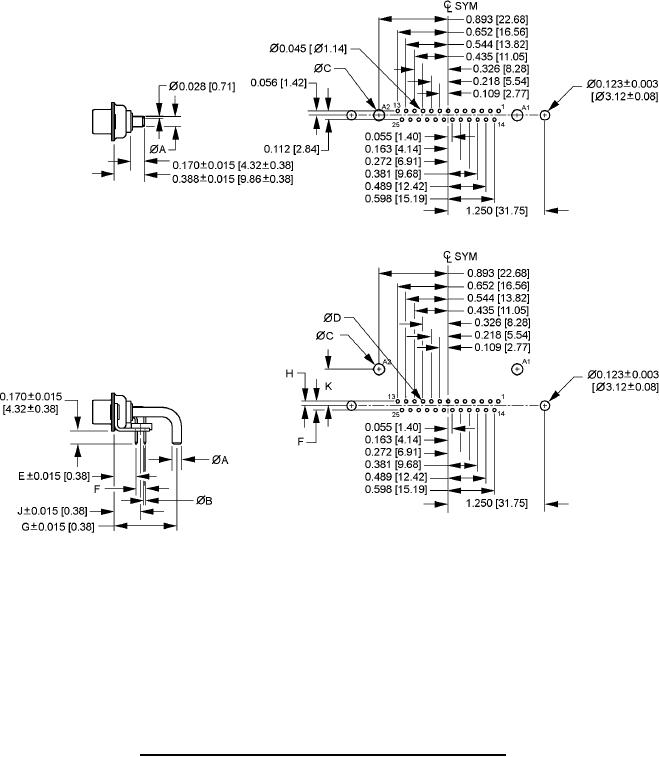

FIGURE 3. Terminations and layout arrangement power connector - Continued.
8
