MIL-DTL-24308 Connectors, Electric, Rectangular, Nonenvironmental, Miniature, Polarized Shell, Rack And Panel, General Specification ForThis specification covers the requirements for nonenvironmental, polarized shell, miniature, rack and panel connectors having pin and socket, crimp \(removable\), solder \(nonremovable\), or insulation displacement \(nonremovable\) contacts with rigid or float mounting, designed for -55 degrees C to +125 degrees C operating temperature range.

Pages 1 - - 27 - 28 - 29 - 30 - 31 - 32 - 33 - 34 - 35 - 36 - 37 - 38 - 39|||

MIL-DTL-24308G

APPENDIX A

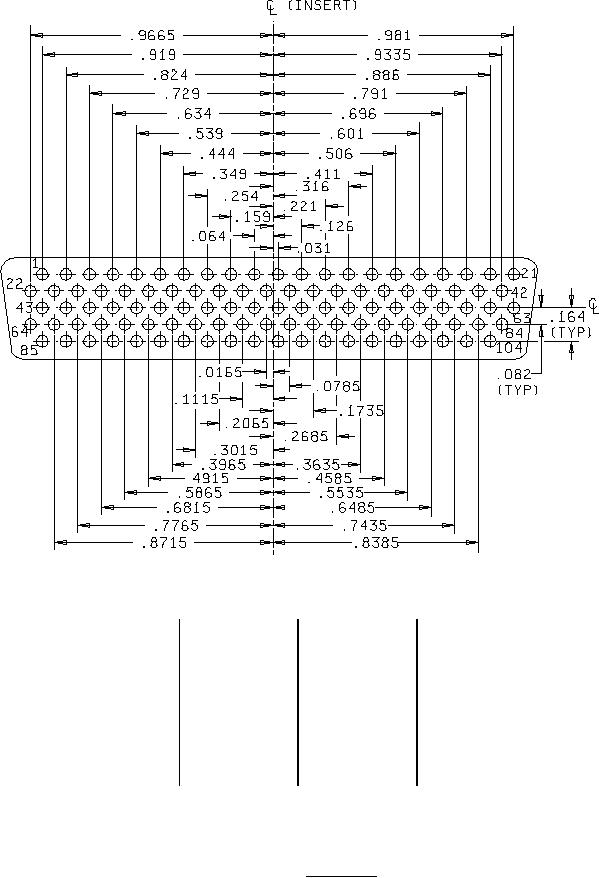

ARRANGEMENT 1

104 size 22D contacts

Inches

.0165

0.419

.221

5.61

.4915

12.484

.7435

18.885

.031

0.79

.254

6.45

.506

12.85

.7765

19.723

.064

1.63

.2685

6.820

.539

13.69

.791

20.09

.0785

1.994

.3015

7.658

.5535

14.059

.824

20.93

.082

2.08

.316

8.03

.5865

14.897

.8385

21.298

.1115

2.832

.349

8.86

.601

15.27

.8715

22.136

.126

3.20

.3635

9.233

.634

16.10

.886

22.50

.159

4.04

.3965

10.071

.6485

16.472

.919

23.34

.164

4.17

.411

10.44

.6815

17.310

.9335

23.711

.1735

4.407

.444

11.28

.696

17.68

.9665

24.549

.2065

5.245

.4585

11.646

.729

18.52

.981

24.92

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for information only.

FIGURE A-6. Shell size 6.
