MIL-DTL-24308 Connectors, Electric, Rectangular, Nonenvironmental, Miniature, Polarized Shell, Rack And Panel, General Specification ForThis specification covers the requirements for nonenvironmental, polarized shell, miniature, rack and panel connectors having pin and socket, crimp \(removable\), solder \(nonremovable\), or insulation displacement \(nonremovable\) contacts with rigid or float mounting, designed for -55 degrees C to +125 degrees C operating temperature range.

Pages 1 - - 20 - 21 - 22 - 23 - 24 - 25 - 26 - 27 - 28 - 29 - 30 - 31 - 32 - 33 - 34 - 35 - 36 - 37 - 38|||

MIL-DTL-24308G

APPENDIX A

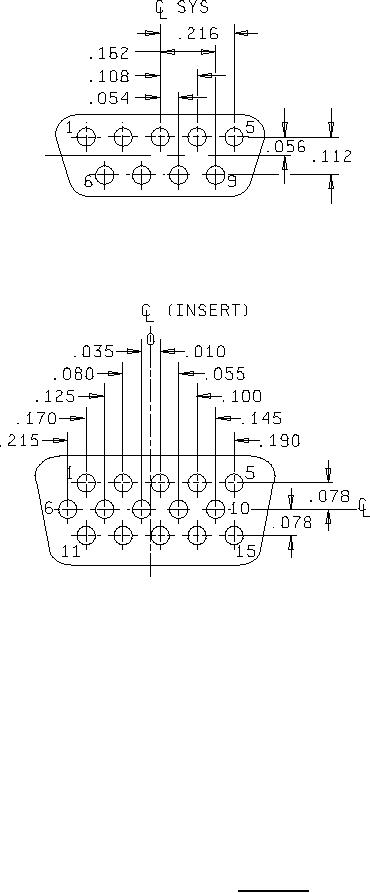

ARRANGEMENT 1

9 size 20 contacts.

Inches

.010

0.25

.035

0.89

.054

1.37

.055

1.40

.056

1.42

.078

1.98

.080

2.03

.100

2.54

.108

2.74

.112

2.84

.125

3.18

.145

3.68

.162

4.11

.170

4.32

.190

4.83

.215

5.46

ARRANGEMENT 2

.216

5.49

15 size 22D contacts.

NOTES:

1. Patent notice. The Government has a royalty free license under the U.S. Patents listed below for the benefit of

manufacturers of the items disclosed and described herein, either for the Government or for use in equipment

delivered to the Government.

Patent Numbers

2790153 expires April 23, 1974

3110093 expires November 12, 1980

3185424 expires November 24, 1981

2. Copyright notice. All information disclosed in this military standard which is or may be copyrighted by ITT

Cannon Electric is reproduced herein with the express permission of the copyright owner.

3. Dimensions are in inches.

4. Metric equivalents are given for information only.

FIGURE A-1. Shell size 1.
