MIL-DTL-24308G
APPENDIX B
CONTACT PIN AND SOCKET
CLASSES G, N, AND H SOLDERTYPE,
NON-REMOVABLE
B.1 SCOPE
B1.1 Scope. This appendix covers contacts, pin and socket, classes G, N and H solder type, non-removable for
use with MIL-DTL-24308 rectangular, nonenvironmental, polarized shell, miniature, rack and panel connectors. This
Appendix is a mandatory part of the specification. The information contained herein is intended for compliance.
B.2 APPLICABLE DOCUMENTS
(This section not applicable to this appendix.)
B.3 GENERAL REQUIREMENTS
(This section not applicable to this appendix.)
B.4 DETAIL REQUIREMENTS
B.4.1 Dimensions and configurations. See table B-I and figures B-1 through B-6. The following details apply:
a.
Dimensions are in inches.
b.
Metric equivalents (to the nearest .01 mm) are given for information only.
c.
Dimensions are after plating.
d.
Reference documents shall be of the issue in effect on the date of invitation for bids.
e.
For design feature purposes, this appendix takes precedence over procurement documents referenced
herein.
f. Lock ring optional - alternate retention for classes G and N connectors, figures B-1 and B-2.
TABLE B-I. Contact configurations.
Figure
Size
Contact
Termination
Class
Superseded
number
Type
MS number
B-1
20
Socket
Solder cup
G, N
MS18281-1
B-2
20
Pin
Solder cup
G, N
MS18281-2
B-3
20
Pin
Eyelet
H
MS18281-3
B-4
20
Pin
Solder cup
H
MS18281-4
B-5
22D
Socket
Solder cup
G,N
MS18281-5
B-6
22D
Pin
Solder cup
G,N
MS18281-6
.041DIA
.039
LOCKRING
Optional
(See B.4.1f)

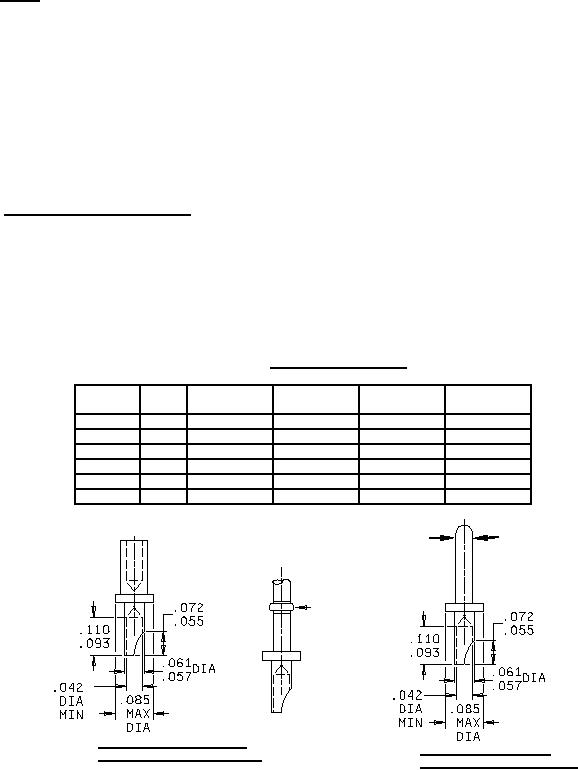

FIGURE B-1. Socket, size 20 (solder cup) for
FIGURE B-2. Pin, size 20 (solder cup) for
connector classes G, M, N, and D.
connector classes G,M ,N, and D.
37
