MIL-DTL-25516 Connectors, Electrical, Miniature, Coaxial, Environment Resistant Type, General Specification ForThis specification covers a series of miniature, moisture proof connectors suitable for operation with shielded and unshielded cable up to 750 volts rms under severe environmental conditions.

Pages 1 - - 2 - 3 - 4 - 5 - 6 - 7 - 8|||9 - 10 - 11 - 12|||


MIL-DTL-25516F
Slot in coupling rings mate
Receptacles (not shown)
with receptacle lugs
have coupling lugs
PIN 01, 02, 09 and 10 are inactive for new design. Support for existing designs maintained.

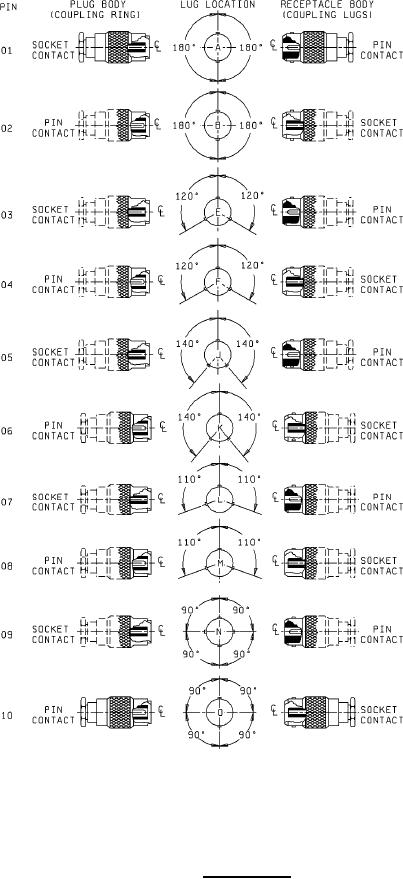

FIGURE 1. Polarity chart.
3
