INCH-POUND
MIL-DTL-2726/38D
20 October 2006
SUPERSEDING
MIL-R-2726/38C(SH)
3 July 1986
DETAIL SPECIFICATION SHEET
RECEPTACLE, PLUG, ELECTRICAL, 15 - AMPERE, 125 - VOLT,
BLADED TYPE, GROUNDED (SYMBOL NO. 1218.3)
Reactivated after 20 June 2004 and may be used for new
and existing designs and acquisitions.
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this
specification sheet and MIL-DTL-2726.
Inches
mm
2.250
57.15
3.375
95.25
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ± .016 (0.41mm).
4. Supersedes: Drawing 815-1197230, symbols 1218, 1218.1 and 1218.2.

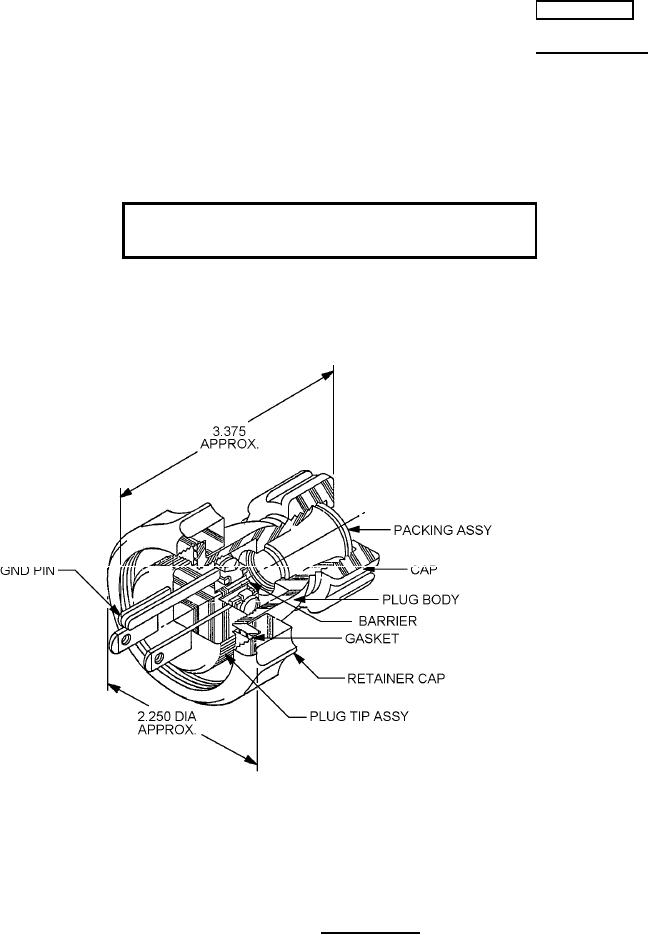

FIGURE 1. Plug assembly.
AMSC N/A
FSC 5935
