MIL-DTL-2726-38 Receptacle, Plug, Electrical, 15 - Ampere, 125 - Volt, Bladed Type, Grounded \(Symbol No. 1218.3\)

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8

MIL-DTL-2726/38D

Inches

.062

1.57

.094

2.39

.125

3.17

.375

9.52

.750

19.05

1.125

26.57

1.312

33.32

1.88

47.7

2.250

57.15

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for information only.

3. Unless otherwise specified, tolerances are � .016 (0.41mm) and � .5� on angles.

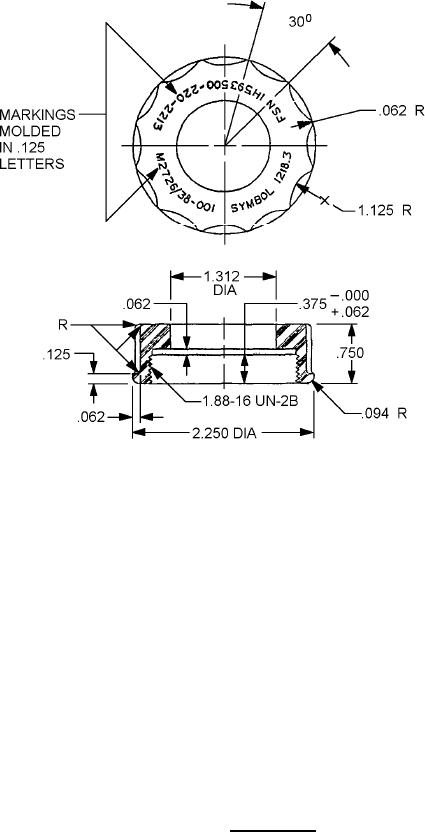

FIGURE 3. Retainer cap.
