MIL-DTL-2726-38 Receptacle, Plug, Electrical, 15 - Ampere, 125 - Volt, Bladed Type, Grounded \(Symbol No. 1218.3\)

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8

MIL-DTL-2726/38D

Inches

0.13

.005

1.57

.062

3.17

.125

9.52

.375

11.10

.437

14.27

.562

17.25

.679

19.05

.750

25.40

1.000

26.9

1.06

31.75

1.250

43.18

1.700

46.02

1.812

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for information only.

3. Unless otherwise specified, tolerances are � .016 (0.41mm) and � .5� on angles.

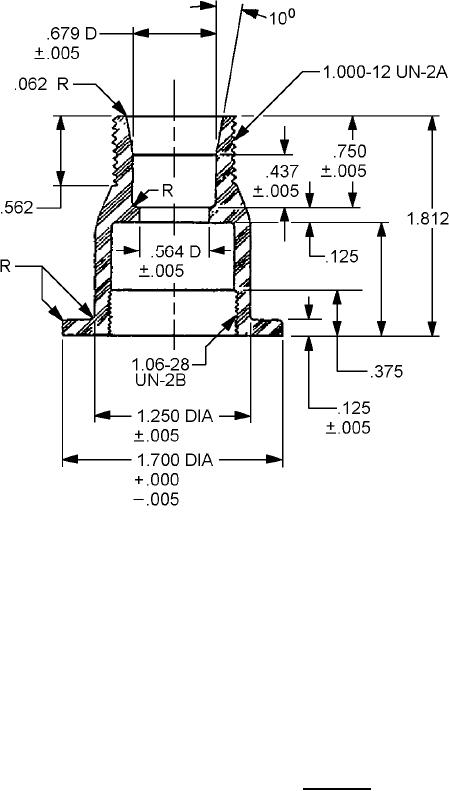

FUGURE 4. Plug body.
