MIL-DTL-2726-73 Receptacle, Electrical, 15-Ampere, 125-Volt, Bladed Type, Grounded \(Portable\) \(Symbol No. 1215\)

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8

MIL-DTL-2726/73C

SH 10423

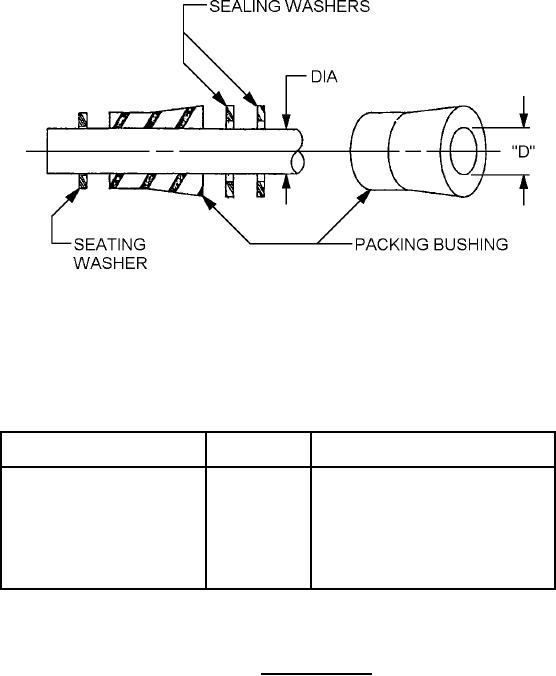

SELECT PACKING ASSEMBLY TO SUIT CABLE DIAMETER

BUSHING

PACKING ASSY

CABLE DIA

"D" DIA

Part or Identifying Number (PIN).

.400 -.440 (11.16)-(11.18)

.415 (10.54)

M2726/50-004-1

.440 - .520 (11.18)-(13.20)

.470 (11.94)

M2726/50-004-2

.520 - .560 (13.20)-(14.23)

.550 (13.97)

M2726-50-004-3

FIGURE 2. Instruction sheet.
