MIL-DTL-2726/73C
Inches
mm
Inches
mm
17.26
.679
.002
0.05
19.05
.750
.005
0.13
25.40
1.000
.062
1.57
26.97
1.062
3.18
.125
28.58
1.125
3.58
.141
31.75
1.250
7.14
.281
33.3
1.31
.312
7.92
39.67
1.562
9.08
.375
47.63
1.875
11.10
.473
50.80
2.000
14.27
.562
57.30
2.256
14.33
.564
73.03
2.875
15.88
.625
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ± .016 (0.41mm) and ± 0°30' on angles.

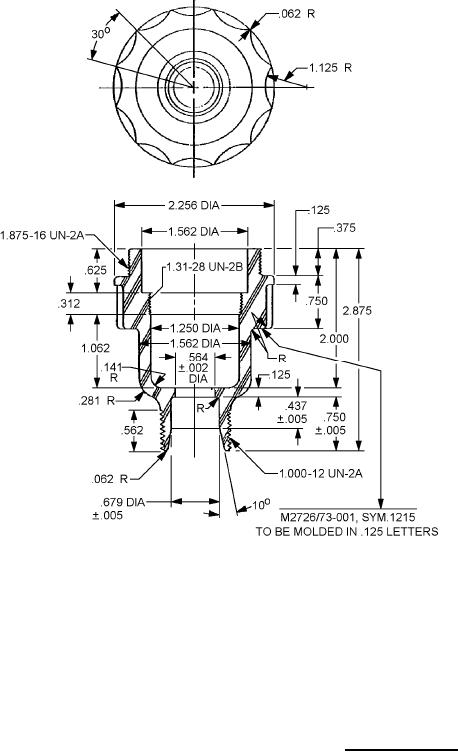

FIGURE 3. Receptacle body.
3
