MIL-DTL-2726/73C

Inches

.005

0.13

.062

1.57

.125

3.18

.188

4.78

.438

11.13

.500

12.70

1.245

31.62

1.31

33.3

1.375

34.93

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for information only.

3. Unless otherwise specified, tolerances are � .016 (0.41mm) and � 0�30' on angles.

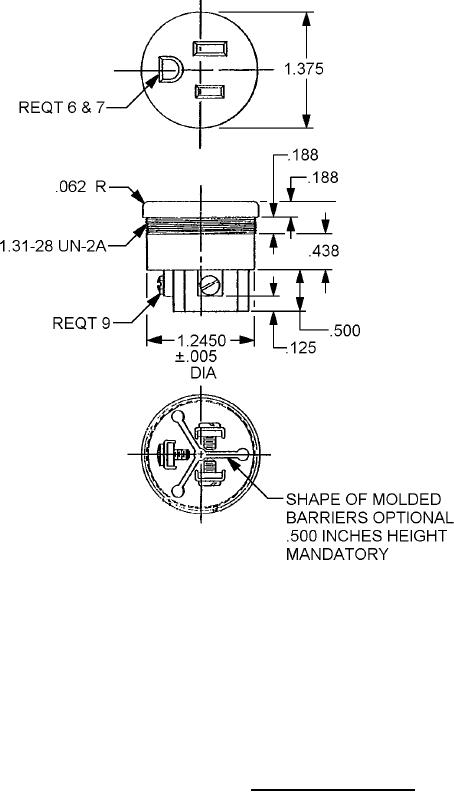

FIGURE 4. Receptacle tip assembly.
